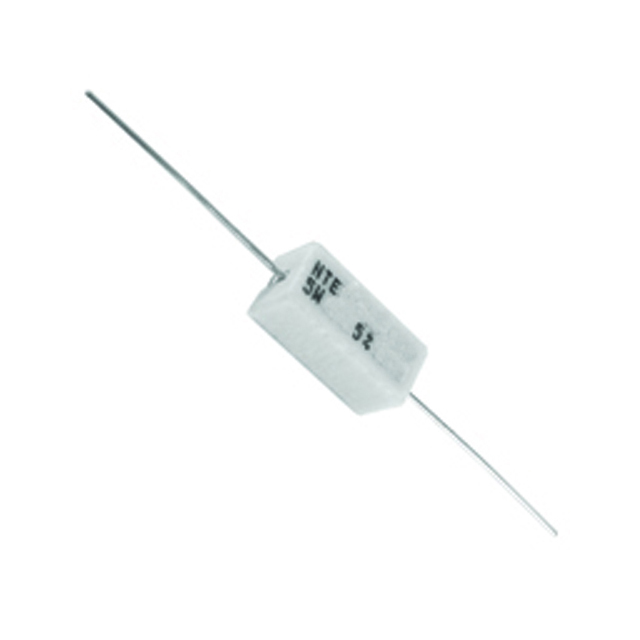

5W056

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Manufacturer :

NTE Electronics

Lead Diameter :

0.036

Mount :

Through Hole

Tolerance :

±5%

Termination :

Axial

Reach Compliance Code :

Unknown

Features :

-

Size / Dimension :

0.380" Square x 0.866" L (9.65mm x 22.00mm)

Min Operating Temperature :

-55 °C

Lead Length :

1.5

Max Operating Temperature :

155 °C

Size Code :

8738

Number of Terminals :

2

Package Length :

22 mm

Composition :

Wirewound

Terminal Type :

Axial Leads

Power Rating :

5 W

Series :

-

Resistor Type :

FIXED RESISTOR

Technology :

Wire Wound

Rated Power Dissipation (P) :

5 W

Working Voltage :

200 V

Supplier Device Package :

Axial

Wattage :

5

Package Width :

9.65 mm

RoHS :

Non-Compliant

Failure Rate :

-

Package Type :

Axial Lead

Product Status :

Active

Number of Terminations :

2

Temperature Coefficient :

±300ppm/°C

Height - Seated (Max) :

-

Package Height :

9.65 mm

Power (Watts) :

5W

Construction :

Wirewound

Package :

Bag

Operating Temperature :

-55°C ~ 155°C

Subcategory :

Fixed Resistors

Package / Case :

Axial

Resistance :

56 Ohms
