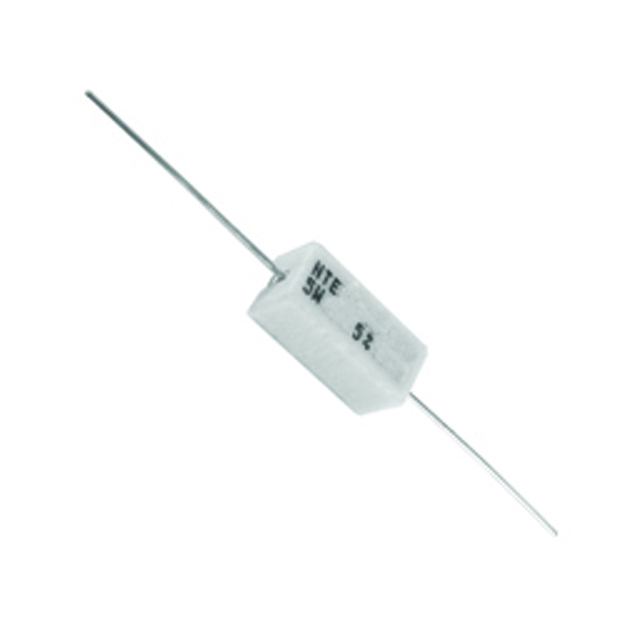

5W047

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Operating Temperature :

-55°C ~ 155°C

Terminal Shape :

Wire

ECCN Code :

EAR99

Resistor Type :

FIXED RESISTOR

Package / Case :

Axial

Package :

Bag

Package Length :

22 mm

Size Code :

8738

Reach Compliance Code :

Unknown

Temperature Coefficient :

±300ppm/°C

Package Height :

9.65 mm

Package Type :

Axial Lead

Failure Rate :

-

Working Voltage :

550 V

Technology :

Wire Wound

Wattage :

5

Terminal Type :

Axial Leads

HTS Code :

8533.21.00.80

Height - Seated (Max) :

-

Features :

-

Supplier Device Package :

Axial

Package Shape :

RECTANGULAR PACKAGE

Number of Terminations :

2

Product Status :

Active

Composition :

Wirewound

Tolerance :

±5%

Subcategory :

Fixed Resistors

Number of Terminals :

2

Manufacturer :

NTE Electronics

Series :

-

Rated Temperature :

70 °C

Power (Watts) :

5W

Resistance :

47 Ohms

Rated Power Dissipation (P) :

5 W

Lead Length :

1.5

Construction :

Wirewound

Mounting Feature :

THROUGH HOLE MOUNT

Size / Dimension :

0.380" Square x 0.866" L (9.65mm x 22.00mm)

Lead Diameter :

0.036

Package Width :

9.65 mm

Surface Mount :

No
