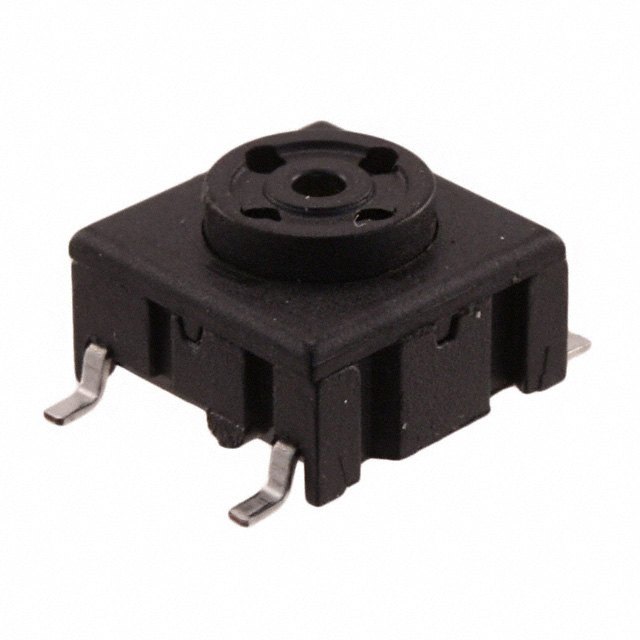

5ESH935

Manufacturer :

MEC switches

Product Category :

Product Height (mm) :

6.4(mm)

Product Length (mm) :

10.1(mm)

Contact Form :

SPST

IP Rating :

IP67

Width :

10.3 mm

Length :

10.3 mm

Illumination Type :

Not Required

Mounting Style :

SMD/SMT

Actuator :

Round

Switch Function :

OFF - (ON)

Operating Force :

2 N

Voltage Rating (VDC) :

24(V)

Power Rating :

-

Current Rating (Max) :

0.05(A)

Operating Temperature Range :

- 40 C to + 160 C

Lamp Type :

-

Product Depth (mm) :

14(mm)

Height :

6.4 mm

Travel :

1 mm

Terminal Type :

Gull wing

RoHS :

Details

Operating Temp Range :

-40C to 160C

Tradename :

multimec

Pole Throw Configuration :

SPST

Illumination Color :

-

Switch Function Configuration :

N.O.

ECCN :

EAR99

Contact Material :

Stainless Steel

Color :

Black

Body Orientation :

Straight

Actuator Style :

Button

Itar Registered :

No

Maximum Operating Temperature :

+ 160 C

Minimum Operating Temperature :

- 40 C

Termination Style :

Gull Wing Lead

Mechanical Life :

10000000

Current Rating :

50 mA

Series :

5E
