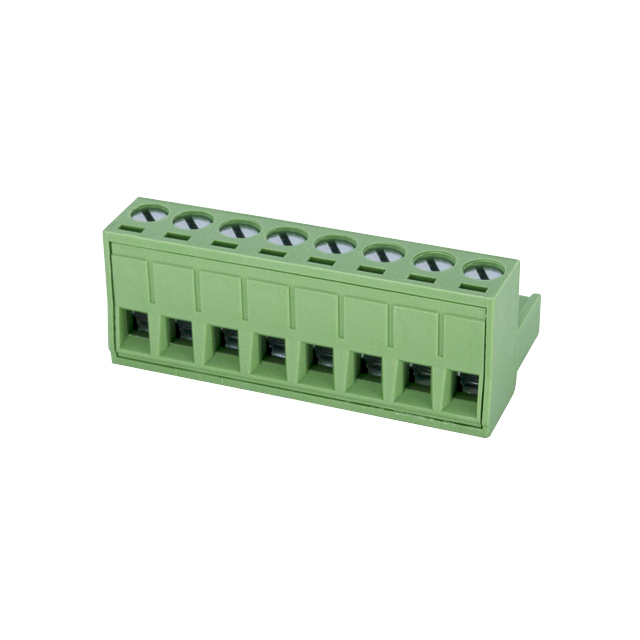

5ESDV-08P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Number of Positions :

8

Number of Rows :

1

Series :

5ESDV

Fastening Method :

Screw

Wire Gauge or Range - mm² :

0.2-2.5mm²

Wire Gauge :

12 AWG

Current - UL :

15 A

Package :

Bulk

Mounting Type :

Connector

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Termination Style :

Screw - Rising Cage Clamp

Plug Wire Entry :

180°

Header Orientation :

-

Number of Ways :

8

Type :

Plug, Female Sockets

Safety Approval :

CE; CSA; CUL; IEC; UL; VDE

Voltage - IEC :

600 V

Product Status :

Active

Color :

Green

Number of Levels :

1

Additional Feature :

STANDARD: UL 94V-0, PA66

Number of Decks :

1

Current - IEC :

18A

Wire Gauge or Range - AWG :

12-30 AWG

Rated Current :

15 A

Operating Temperature :

-40°C ~ 120°C

Wire Cross Section :

2.5 mm2

Positions Per Level :

8

Rated Voltage :

300 V

Features :

-

Reach Compliance Code :

Compliant

Pitch :

0.197 (5.00mm)

Voltage - UL :

300 V

Contact Mating Finish :

Tin
