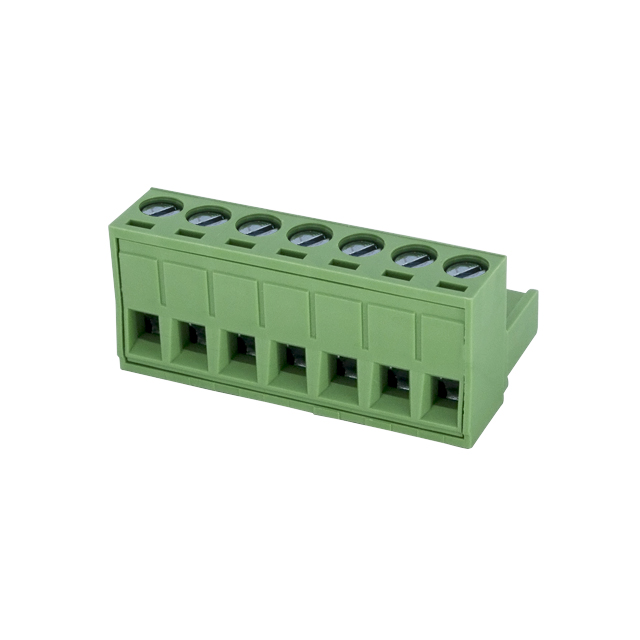

5ESDV-07P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Current - UL :

15 A

Plug Wire Entry :

180°

Wire Gauge or Range - mm² :

0.2-2.5mm²

Positions Per Level :

7

Pitch :

0.197 (5.00mm)

Features :

--

Size / Dimension :

0.689 L x 0.232 W (17.50mm x 5.90mm)

Termination :

PC Pins

Packaging :

Bulk

Mounting Type :

Through Hole

Current - IEC :

18A

Wire Gauge or Range - AWG :

12-30 AWG

Voltage - UL :

300 V

Voltage Rating - DC :

630V

Lead Spacing :

0.591 (15.00mm)

Header Orientation :

-

Number of Levels :

1

Dielectric Material :

Polyester, Metallized

Tolerance :

±5%

Contact Mating Finish :

Tin

Package / Case :

Radial

Color :

Green

Series :

MKT468

Termination Style :

Screw - Rising Cage Clamp

Type :

Plug, Female Sockets

Voltage - IEC :

600 V

Moisture Sensitivity Level (MSL) :

--

Package :

Bulk

Product Status :

Active

Operating Temperature :

-55°C ~ 105°C

Voltage Rating - AC :

250V

Ratings :

--

Capacitance :

0.056μF

Height - Seated (Max) :

0.591 (15.00mm)

Number of Positions :

7

Applications :

GENERAL PURPOSE
