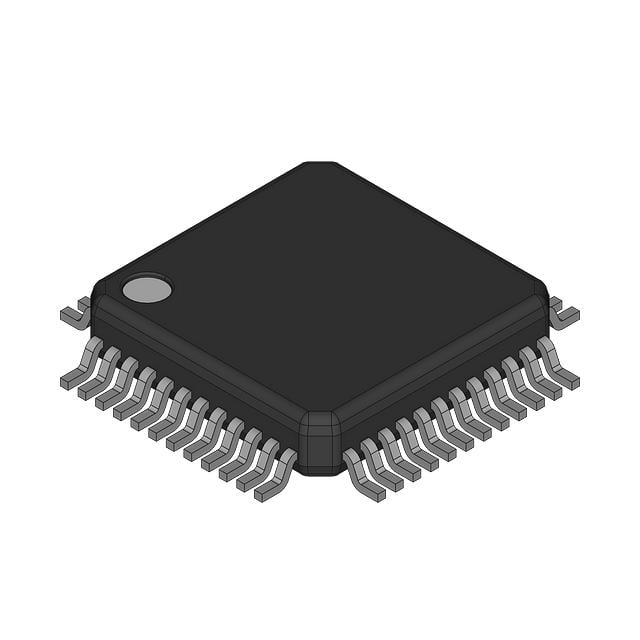

5962-0051101NXD

Manufacturer :

Texas Instruments

Product Category :

Analog to Digital Converters (ADC)

Max Operating Temperature :

125°C

Height :

1.2mm

Min Operating Temperature :

-55°C

Temperature Grade :

Military

Integral Nonlinearity (INL) :

7.5 LSB

Supply Current-Max :

90mA

Max Supply Voltage (DC) :

3.6V

Number of Terminations :

48

Pin Count :

48

Supply Voltage :

3.3V

Resolution :

1.75 B

Qualification Status :

Qualified

Max Supply Voltage :

3.6V

Linearity Error-Max (EL) :

0.0458%

Min Supply Voltage :

3V

Terminal Position :

QUAD

Min Supply Voltage (DC) :

3V

Length :

7mm

JESD-609 Code :

e4

Pbfree Code :

yes

Operating Supply Voltage :

3.3V

Sample and Hold / Track and Hold :

SAMPLE

Interface :

Parallel

Terminal Pitch :

0.5mm

Width :

7mm

Number of Pins :

48

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Bits :

14

Screening Level :

MIL-PRF-38535

Terminal Form :

Gull wing

Power Dissipation :

270mW

Signal to Noise Ratio (SNR) :

72 dB

Sampling Rate :

8 Msps

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Power Consumption :

270mW

Number of Analog In Channels :

1

Supply Type :

Analog, Digital

Thickness :

1mm

Lead Free :

Lead Free

Converter Type :

ADC, PROPRIETARY METHOD

Polarity :

Bipolar

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Elements :

1

Peak Reflow Temperature (Cel) :

260

Power Dissipation-Max :

360mW

Spurious-free dynamic range (SFDR) :

80 dB

Contact Plating :

Gold

Differential Nonlinearity :

1 LSB

Output Bit Code :

BINARY, 2'S COMPLEMENT BINARY

Number of Functions :

1

RoHS Status :

RoHS Compliant

Surface Mount :

yes
