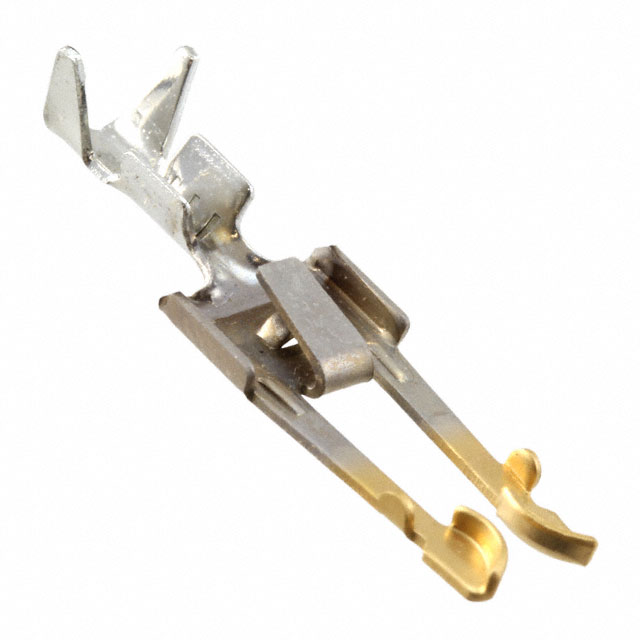

583259-3
Or copy the link below:
- Mfr.Part #
- 583259-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM EDGE 20-24AWG CRIMP GOLD
- Stock
- 4,414
- In Stock ：
- 4,414
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Contacts
- Lead Free :
- Not Applicable
- Wire Gauge :
- 20-24 AWG
- Contact Current Rating :
- 5A
- Pin or Socket :
- Non-Gendered
- Factory Lead Time :
- 14 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Min Operating Temperature :
- -55°C
- Plating :
- Gold
- Wire Gauge (Max) :
- 24 AWG
- Published :
- 1997
- Contact Termination :
- Crimp
- Contact Finish :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Wire Gauge (Min) :
- 20 AWG
- Contact Plating :
- Gold
- ELV :
- Non-Compliant
- PCB Mount Retention :
- Without
- Packaging :
- Tape and Reel (TR)
- Insulation Diameter :
- 2.286 mm
- Connector Type :
- Socket
- Orientation :
- Vertical
- Contact Material :
- Phosphor Bronze
- Pitch :
- 3.9624mm
- PCB Thickness :
- 1.57mm
- Make First / Break Last :
- No
- Max Operating Temperature :
- 105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mounting Orientation :
- Vertical
- Mount :
- Standard
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Termination :
- Crimp
- Datasheets
- 583259-3
