5796055-2

Share

Or copy the link below:

Mfr.Part #
5796055-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 68POS R/A SOLDER
Stock
1
In Stock :
1

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Centronics Connectors
Series :
CHAMP .031
RoHS Status :
RoHS Compliant
Flange Feature :
Housing/Shell (M2.6)
Published :
1999
Insulation Resistance :
500000000Ohm
Contact Material :
Bronze
Pitch :
800μm
Mating Connector Lock :
With
Packaging :
Box
Flammability Rating :
UL94 V-0
Circuit Application :
Signal
Reference Standard :
UL
Current Rating :
1.5A
Orientation :
RIGHT ANGLE
Number of Terminations :
68
Lead Length :
3.556mm
Number of Rows :
2
PCB Contact Pattern :
STAGGERED
JESD-609 Code :
e3
Contact Finish :
Gold
Hole Diameter :
1.2 mm
Mounting Type :
Panel Mount, Through Hole, Right Angle
Connector Type :
Receptacle
Withdrawl Force-Min :
.0834 N
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Pbfree Code :
yes
Sealable :
No
Total Number of Contacts :
68
PCB Thickness :
2.35mm
IEC Conformance :
No
Operating Temperature (Min) :
-55°C
Mount :
Through Hole
Voltage - Rated :
30V
Reliability :
COMMERCIAL
MIL Conformance :
No
Shell Material :
Steel
Number of Ports :
1
Additional Feature :
ROHS AND ELV COMPLIANT
Plating :
Copper, Nickel
Operating Temperature (Max) :
85°C
Shielding :
Shielded
Length :
42.7mm
Preloaded :
yes
UL Flammability Code :
94V-0
Gender :
FEMALE
Factory Lead Time :
11 Weeks
PCB Mounting Orientation :
RIGHT ANGLE
Number Of PCB Rows :
4
Termination :
Solder
Plating Thickness :
760 nm
Color :
Black
Contact Finish Thickness :
30.0μin 0.76μm
Option :
GENERAL PURPOSE
Housing Material :
Thermoplastic
Connector Style :
Outer Shroud Contacts
Depth :
14.68mm
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Mixed Contacts :
No
Contact Pattern :
RECTANGULAR
Contact Style :
BELLOWED TYPE
Feature :
Board Guide, Board Lock, Shielded
DIN Conformance :
No
Empty Shell :
No
Filter Feature :
No
Contact Plating :
Gold, Tin
Datasheets
5796055-2
Introducing Centronics Connectors TE Connectivity AMP Connectors 5796055-2 from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:68, Mounting Type:Panel Mount, Through Hole, Right Angle, 5796055-2 pinout, 5796055-2 datasheet PDF, 5796055-2 amp .Beyond Centronics Connectors TE Connectivity AMP Connectors 5796055-2 ,we also offer 10268-6212PC, 10214-1210PE, 10126-3000PE, Our vast inventory has you covered. Contact us now for immediate solutions.

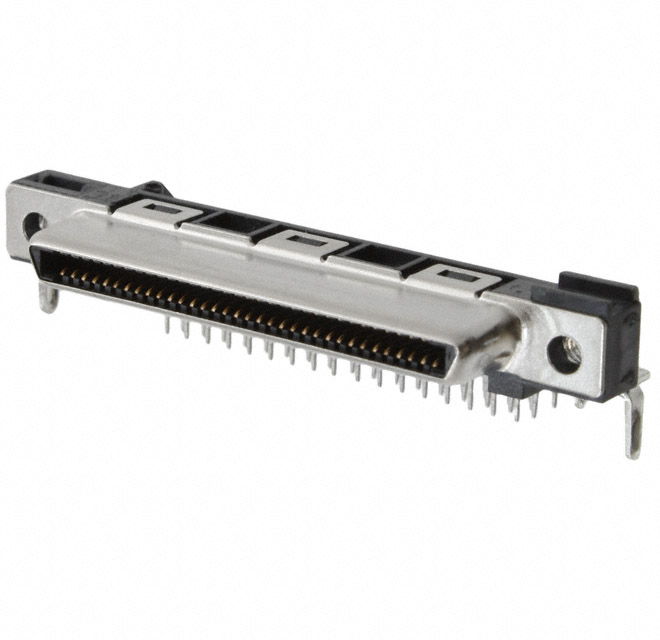

TE Connectivity AMP Connectors 5796055-2


5796055-2 datasheet pdf and D-Shaped Connectors - Centronics product details from TE Connectivity AMP Connectors stock available at Xinshop

Description: The TE Connectivity / AMP 5796055-2 is a 68-position right angle solder receptacle connector. It is a D-shaped connector with a Centronics interface.

Features:
- 68-position receptacle connector
- Right angle design
- D-shaped connector
- Centronics interface
- Solder termination

Applications: The TE Connectivity / AMP 5796055-2 is suitable for a variety of applications, including computer peripherals, data storage, and networking. It is also suitable for use in industrial automation, medical, and military applications.
