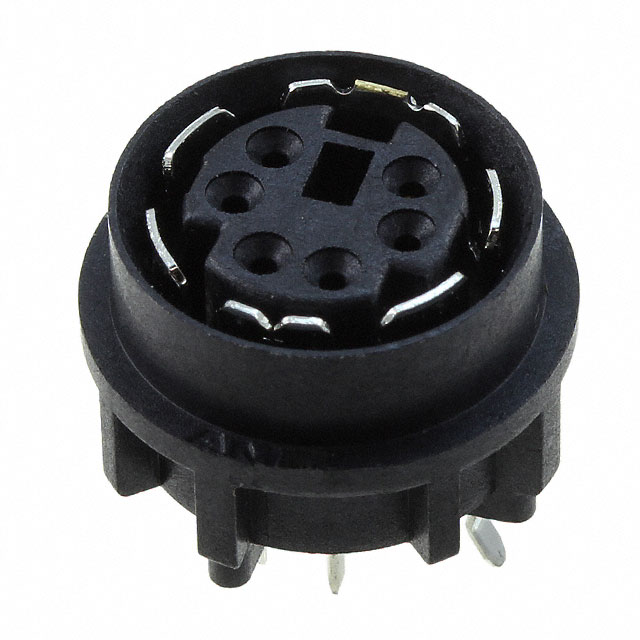

5750327-1
Or copy the link below:
- Mfr.Part #
- 5750327-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE MINI DIN 6P SLDR
- Stock
- 27,288
- In Stock ：
- 27,288
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- JESD-609 Code :
- e3
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Current Rating :
- 1A
- Voltage - Rated :
- 30VDC
- Contact Material :
- COPPER ALLOY
- Packaging :
- Tube
- Sealable :
- No
- Width :
- 13.97mm
- Number of Ports :
- 1
- Operating Supply Voltage :
- 30V
- Height :
- 13.08mm
- Reference Standard :
- UL
- Feature :
- Board Lock
- Total Number of Contacts :
- 6
- Contact Plating :
- Gold, Tin
- Operating Temperature :
- -55°C~105°C
- Circuit Application :
- Signal
- Gender :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Shell Material :
- Brass
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 6
- IEC Conformance :
- No
- ELV :
- Compliant
- Option :
- GENERAL PURPOSE
- Orientation :
- Keyed
- Shell Finish :
- TIN OVER COPPER
- Lead Free :
- Lead Free
- Contact Gender :
- FEMALE
- Connector Type :
- Receptacle, Female Sockets
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Shielding :
- Unshielded
- Mating Alignment :
- With
- Reliability :
- COMMERCIAL
- REACH SVHC :
- Unknown
- Shell Size - Insert :
- Mini DIN
- Housing Color :
- Black
- Fastening Type :
- Push-Pull
- Mount :
- Through Hole
- Length :
- 22.606mm
- Underplate Material :
- Nickel
- PCB Mounting Orientation :
- Vertical
- Length - Tail :
- 3.18mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Feature :
- Flange
- Mounting Type :
- Panel Mount, Through Hole
- Contact Style :
- RND PIN-SKT
- Applications :
- Audio, Video
- MIL Conformance :
- No
- Factory Lead Time :
- 11 Weeks
- Published :
- 2005
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyester
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 5750327-1
Receptacle, Female Sockets Brass Panel Mount, Through Hole 6 Positions Solder Gold TIN OVER COPPER Tube Keyed Push-Pull
5750327-1 Overview
A Receptacle, Female Sockets package is included with it.Its mounting type is Panel Mount, Through Hole.Packaging is performed using a Tube case.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.There is no operating temperature for the device.
5750327-1 Features
5750327-1 Applications
There are a lot of TE Connectivity AMP Connectors
5750327-1 Circular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
