Mfr.Part #
5749069-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN D-TYPE RCPT 20POS VERT SLDR
Stock
969
In Stock :
969

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
D-Sub Connector Assemblies
Lifecycle Status :
ACTIVE (Last Updated: 1 week ago)
Mounting Type :
Through Hole
ECCN Code :
EAR99
Radiation Hardening :
No
PCB Mount Retention :
With
Lead Length :
3.175mm
Hole Diameter :
2.77 mm
Number of Ports :
1
HTS Code :
8536.69.40.30
Mixed Contacts :
No
Total Number of Contacts :
20
Shell Material :
Steel
Feature :
Shielded
Plating :
Copper, Tin
Shell Size, Connector Layout :
0.050 Pitch x 0.100 Row to Row
Shell Material, Finish :
Steel, Nickel Plated
Connector Style :
D-Type
Reliability :
COMMERCIAL
Reference Standard :
UL, CSA
Packaging :
Tube
Termination :
Solder
UL Flammability Code :
94V-0
Mount :
Through Hole
Contact Finish :
Gold
Flammability Rating :
UL94 V-0
Option :
GENERAL PURPOSE
Number of Positions :
20
Filter Feature :
No
Operating Temperature :
-55°C~105°C
IEC Conformance :
No
Orientation :
Vertical
Pbfree Code :
yes
Max Voltage Rating (AC) :
30V
Material Flammability Rating :
UL94 V-0
RoHS Status :
RoHS Compliant
Color :
Black
DIN Conformance :
No
Depth :
10.31mm
Length :
33.4mm
Body Breadth :
0.406 inch
Flange Feature :
Housing/Shell (2-56); Latchblocks, Rails
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Pitch :
1.27mm
Number of Rows :
2
Rated Current (Signal) :
1A
Connector Type :
Receptacle, Female Sockets
Series :
AMPLIMITE .050 III
Row Spacing :
2.54 mm
Current Rating :
1A
Max Supply Voltage (AC) :
30V
MIL Conformance :
No
Factory Lead Time :
11 Weeks
PCB Contact Pattern :
STAGGERED
Number Of PCB Rows :
4
Dielectric Material :
Thermoplastic
Contact Type :
Signal
Contact Material :
Phosphor Bronze
Empty Shell :
No
Insulation Material :
POLYETHYLENE
Dielectric Withstanding Voltage :
500VAC V
Published :
2009
Lead Free :
Lead Free
ELV :
Compliant
Datasheets
5749069-1
Introducing D-Sub Connector Assemblies TE Connectivity AMP Connectors 5749069-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~105°C, 5749069-1 pinout, 5749069-1 datasheet PDF, 5749069-1 amp .Beyond D-Sub Connector Assemblies TE Connectivity AMP Connectors 5749069-1 ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

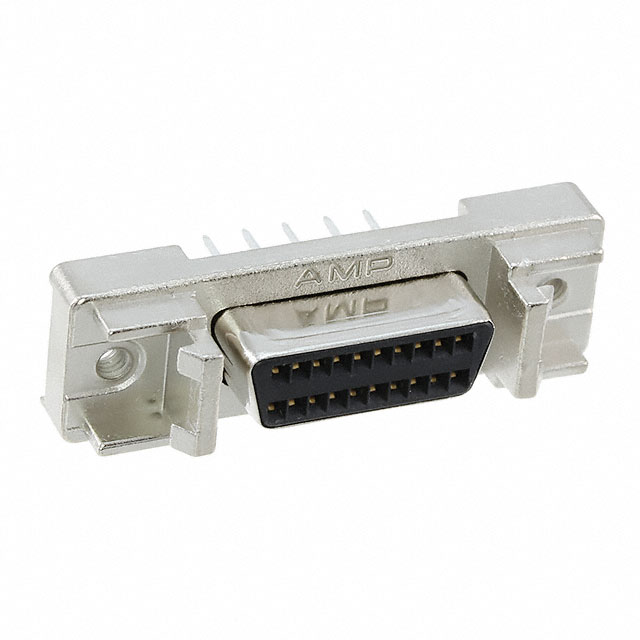

TE Connectivity AMP Connectors 5749069-1


AMPLIMITE .050 III Series D-Type Receptacle, Female Sockets 20-Position Signal Solder 0.050 Pitch x 0.100 Row to Row Through Hole Phosphor Bronze Gold Steel, Nickel Plated

5749069-1 Overview


This product is packaged in a Receptacle, Female Sockets box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number AMPLIMITE .050 III belongs to the AMPLIMITE .050 III Series.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Shielded feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~105°C.
