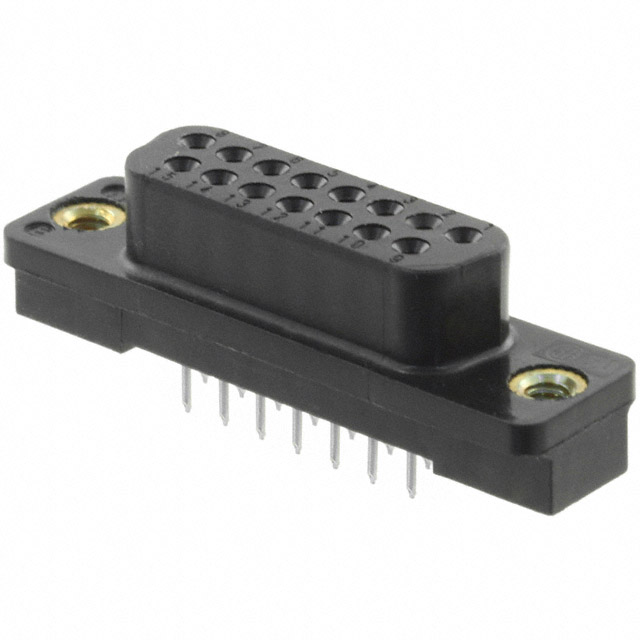

5745057-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Total Number of Contacts :

15

Reference Standard :

UL, CSA

Factory Lead Time :

12 Weeks

Preloaded :

yes

Connector Style :

D-Sub

DIN Conformance :

No

Number Of PCB Rows :

2

Pbfree Code :

yes

Filter Feature :

No

Body Material :

Plastic

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

125V

Shell Size, Connector Layout :

2 DA A

Length :

39.14mm

Current Rating :

6A

Hole Diameter :

3.048 mm

Reliability :

COMMERCIAL

Contact Finish :

Gold

Dielectric Material :

Polyester

Contact Plating :

Gold, Nickel, Tin

MIL Conformance :

No

Color :

Black

RoHS Status :

RoHS Compliant

Sealable :

No

Pitch :

2.7686mm

Contact Finish Thickness :

Flash

Connector Type :

Receptacle, Female Sockets

Mount :

Through Hole

REACH SVHC :

Unknown

Lead Length :

3.175mm

Shielding :

Unshielded

Orientation :

Vertical

Contact Type :

Signal

Mating Connector Lock :

With

Option :

GENERAL PURPOSE

Depth :

10.41mm

Number of Rows :

2

UL Flammability Code :

94V-0

PCB Thickness :

2.36mm

ELV :

Compliant

Series :

AMPLIMITE HD-20

Operating Temperature :

-55°C~105°C

Gender :

Receptacle

Mounting Type :

Through Hole

Row Spacing :

2.8448 mm

Flange Feature :

Housing/Shell (4-40)

IEC Conformance :

No

Contact Shape :

Round

Number of Positions :

15

Mixed Contacts :

No

Number of Ports :

1

Empty Shell :

No

Packaging :

Tube

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Material :

Phosphor Bronze

PCB Contact Pattern :

STAGGERED

Published :

2005

Flammability Rating :

UL94 V-0

Rated Current (Signal) :

6A

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
