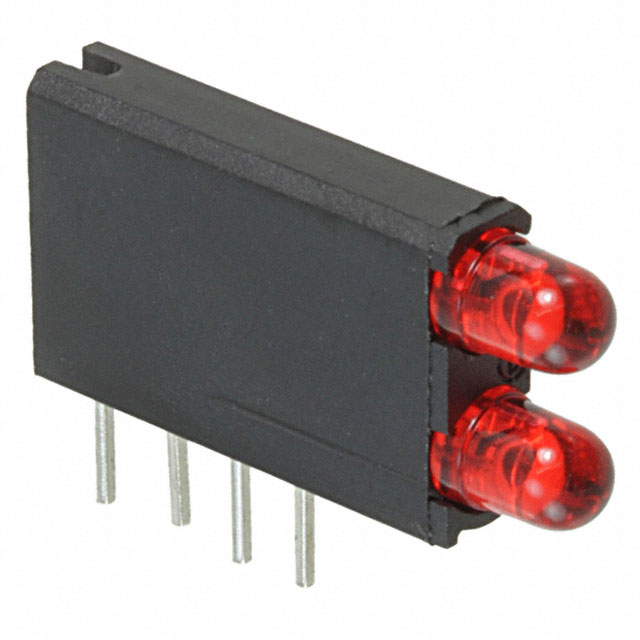

5692211100F

Manufacturer :

Dialight

Product Category :

Packing Method :

Bag

Operating Temperature (Min) :

-55°C

Number of Functions :

2

Millicandela Rating :

29mcd

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

4

Configuration :

2 High

JESD-609 Code :

e4

Lens Style :

Round with Domed Top

T-code :

T-1

HTS Code :

8541.40.20.00

Number of LEDs :

2

Mounting Feature :

RADIAL MOUNT

Color :

Red (x 2)

Luminous Intensity :

29.0 mcd

Packaging :

Bulk

Terminal Pitch :

2.55mm

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Lens Type :

TINTED

Forward Voltage-Max :

2.8V

Factory Lead Time :

10 Weeks

Published :

2010

Wavelength - Peak :

635nm

Current :

20mA

Luminous Intensity-Min :

0.0087 cd

Optoelectronic Device Type :

SINGLE COLOR LED ARRAY

Voltage - Rated :

2V

Operating Temperature (Max) :

100°C

RoHS Status :

ROHS3 Compliant

Series :

569

Surface Mount :

No

Overall Height :

8.88mm

Mounting Type :

Through Hole, Right Angle

Lens Size :

2.85mm Dia

Viewing Angle :

45°
