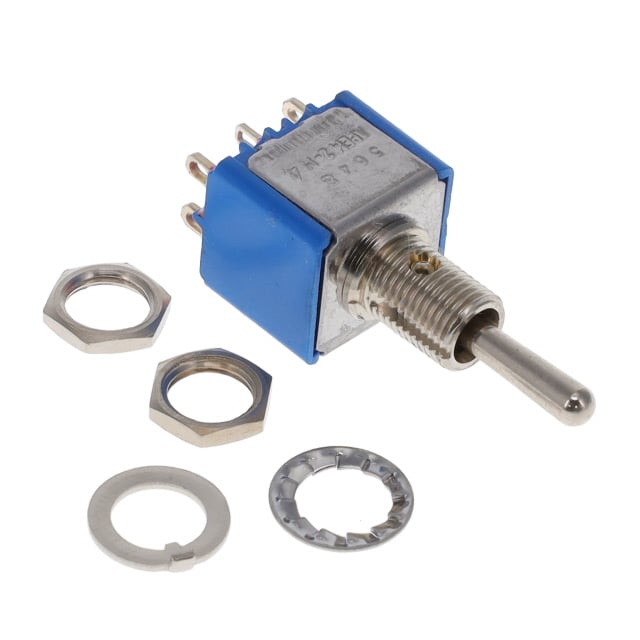

5648AB
Or copy the link below:
- Mfr.Part #
- 5648AB
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 6A 125V
- Stock
- 18
- In Stock ：
- 18
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Body Height :
- 12mm
- Current Rating :
- 4A
- Mounting Type :
- Panel Mount
- Mount :
- Panel
- Contact Current(DC)-Max :
- 4A
- Illumination :
- Non-Illuminated
- Contact Current(AC)-Max :
- 6A
- HTS Code :
- 8536.50.90.65
- Actuator Type :
- Standard Round
- Contact Material :
- Silver
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Feature :
- Epoxy Sealed Terminals
- Switch Type :
- TOGGLE SWITCH
- Body Length or Diameter :
- 13.2mm
- Body Breadth :
- 12 mm
- Current Rating (Amps) :
- 6A AC 4A DC
- Termination Style :
- Solder Lug
- Voltage - Rated DC :
- 30V
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Bushing Thread :
- 1/4-40
- Contact (AC) Max Rating R Load :
- 6A@125VAC
- RoHS Status :
- ROHS3 Compliant
- Actuator Length :
- 10.50mm
- Switch Function :
- On-Off-Mom
- Sealing :
- EPOXY TERMINAL SEALED
- Electrical Life :
- 50,000 Cycles
- Circuit :
- DPDT
- JESD-609 Code :
- e4
- Factory Lead Time :
- 9 Weeks
- Series :
- 5000
- Panel Cutout Dimensions :
- Circular - 6.50mm Dia
- Actuator Material :
- Brass, Nickel Plated
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~85°C
- Voltage - Rated AC :
- 125V
- Datasheets
- 5648AB
