Mfr.Part #
5646362-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER 128POS 2MM PRESS-FIT
Stock
48,478
In Stock :
48,478

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Hard Metric, Standard
ECCN Code :
EAR99
Number of Positions :
128
Number of Conductors :
ONE
Sealable :
No
Total Number of Contacts :
128
Number of Positions Loaded :
All
Reliability :
COMMERCIAL
Number Of PCB Rows :
8
Option :
GENERAL PURPOSE
Packaging :
Tube
ELV :
Compliant
Connector Usage :
Backplane
Max Current Rating :
1.5A
Mixed Contacts :
No
PCB Contact Pattern :
RECTANGULAR
Factory Lead Time :
13 Weeks
Contact Style :
SQ PIN-SKT
Contact Finish Thickness :
30.0μin 0.76μm
Housing Material :
Polyester
Reference Standard :
UL
MIL Conformance :
No
Shielding :
Unshielded
Polarization Key :
POLARIZED HOUSING
Insulation Resistance :
1000000000Ohm
Current Rating :
1.5A
Flammability Rating :
UL94 V-0
Published :
2009
Series :
Z-PACK
PCB Contact Row Spacing :
2.0066 mm
Number of Columns :
16
Filter Feature :
No
RoHS Status :
RoHS Compliant
Length :
38mm
Durability :
250 Cycles
Lead Free :
Not Applicable
Feature :
Board Guide
DIN Conformance :
No
IEC Conformance :
No
Gender :
Male
Operating Temperature :
-55°C~125°C
Termination :
Press-Fit
Pitch :
0.079 2.00mm
Pbfree Code :
yes
Body Depth :
0.529 inch
Contact Material :
Bronze
Number of Rows :
8
Mounting Type :
Through Hole
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Body/Shell Style :
PLUG
Plating Thickness :
760 nm
Contact Finish :
Gold
Orientation :
Vertical
Voltage - Rated :
750Vrms
Connector Style :
D 16
Mating Contact Row Spacing :
0.079 inch
Mount :
Through Hole
Insulator Color :
Gray
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Pattern :
RECTANGULAR
Circuit Application :
Signal
Housing Color :
Grey
Withdrawl Force-Min :
.139 N
JESD-609 Code :
e3
Insertion Force-Max :
.7506 N
Connector Type :
Header, Male Pins
Dielectric Withstanding Voltage :
750VAC V
Datasheets
5646362-1
Introducing Hard Metric, Standard TE Connectivity AMP Connectors 5646362-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~125°C, Mounting Type:Through Hole, 5646362-1 pinout, 5646362-1 datasheet PDF, 5646362-1 amp .Beyond Hard Metric, Standard TE Connectivity AMP Connectors 5646362-1 ,we also offer 5106774-1, HM2P07PD5110N9LF, HM2P09PD5110N9LF, Our vast inventory has you covered. Contact us now for immediate solutions.

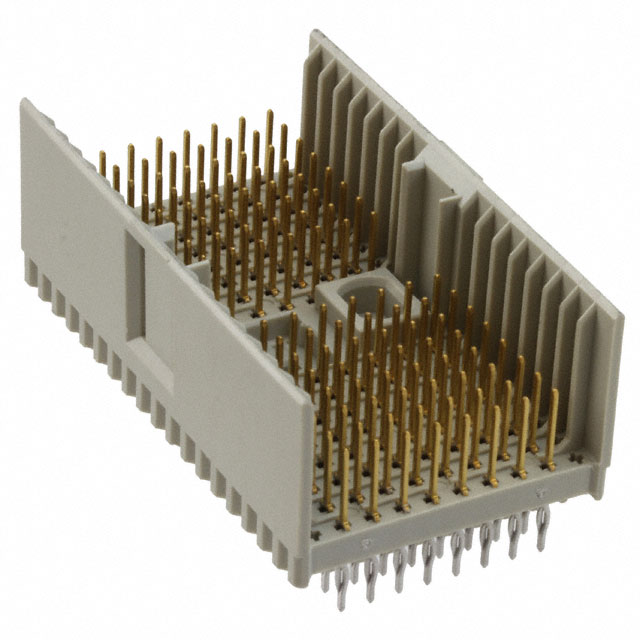

TE Connectivity AMP Connectors 5646362-1
