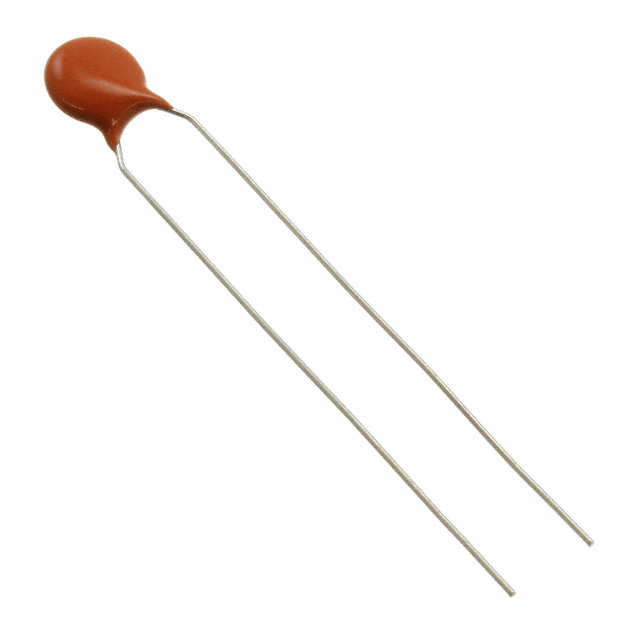

562R5GAD20
Or copy the link below:
- Mfr.Part #
- 562R5GAD20
- Manufacturer
- Vishay BC Components/Beyschlag/Draloric
- Package / Case
- Radial, Disc
- Datasheet
- Download
- Description
- CAP CER 2000PF 1KV Z5U RADIAL
- Stock
- 454
- In Stock ：
- 454
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay BC Components/Beyschlag/Draloric
- Product Category :
- Ceramic Capacitors
- Series :
- Cera-Mite 562R
- Temperature Characteristics Code :
- Z5U
- Lead Free :
- Lead Free
- Weight :
- 4.535924g
- Mount :
- PCB, Radial, Through Hole
- Capacitance :
- 2000pF
- Dissipation Factor :
- 2.5 %
- Contact Plating :
- Tin
- Voltage - Rated DC :
- 1kV
- JESD-609 Code :
- e3
- Height Seated (Max) :
- 0.417 10.58mm
- Composition :
- Ceramic
- Height :
- 6.35mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Pins :
- 2
- Size / Dimension :
- 0.291Dia 7.40mm
- Applications :
- GENERAL PURPOSE
- Multilayer :
- No
- Temperature Coefficient :
- Z5U
- Depth :
- 4mm
- Published :
- 2007
- Number of Terminations :
- 2
- Lead Style :
- Straight
- ECCN Code :
- EAR99
- Factory Lead Time :
- 18 Weeks
- Tolerance :
- ±20%
- Operating Temperature :
- -55°C~105°C
- Lead Pitch :
- 6.4mm
- Lead Spacing :
- 0.252 6.40mm
- Termination :
- Radial
- Packaging :
- Bulk
- Diameter :
- 7.4mm
- Terminal Shape :
- Wire
- REACH SVHC :
- Unknown
- Voltage :
- 1kV
- RoHS Status :
- ROHS3 Compliant
- Package / Case :
- Radial, Disc
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole
- Lead Diameter :
- 510 µm
- Datasheets
- 562R5GAD20
Cera-Mite 562R 2000pF Ceramic Capacitor ±20% Z5U 0.291Dia 7.40mm -55°C~105°C 2 Terminations Through Hole Radial, Disc
562R5GAD20 Overview
This device's program size/dimension is 0.291Dia 7.40mm.A substance's temperature coefficient of resistance is generally defined as how its electrical resistance changes with per degree change in temperature.A voltage of 1kV can be used for operation.In a capacitor, the lead pitch is just the distance (spacing) between adjacent threads.
562R5GAD20 Features
a size/dimension of 0.291Dia 7.40mm
with Z5U being the highest temperature coefficient
with the voltage - Rated DC of 1kV
562R5GAD20 Applications
There are a lot of Vishay Cera-Mite
562R5GAD20 applications of ceramic capacitors.
- General electronic equipment
- Mobile devices
- Servers, PCs, tablets
- Power supply circuit
