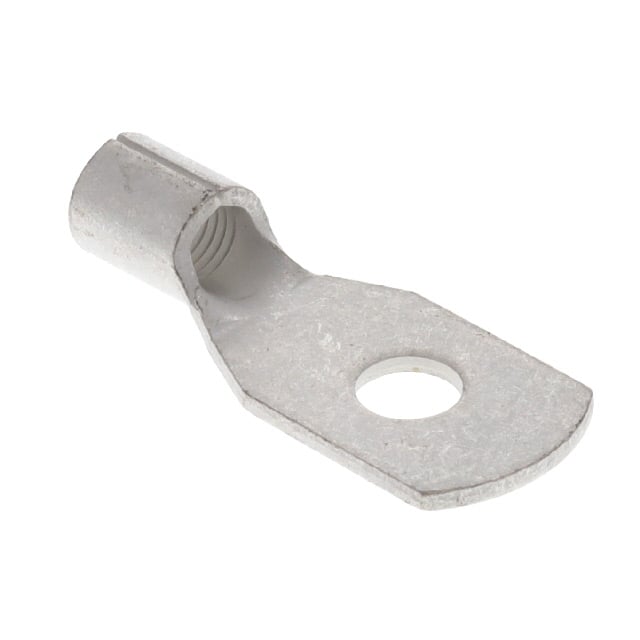

55782-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connectors

Terminal Style :

Single Stud Hole

Packaging :

Bulk

Series :

Solistrand

RoHS Status :

RoHS Compliant

Lead Free :

Not Applicable

Insulated Wire Support :

yes

Published :

1999

Pbfree Code :

yes

Stud/Tab Size :

8 Stud

Mounting Type :

Free Hanging (In-Line)

Stud Diameter :

4.1656 mm

Wire Gauge (Min) :

12 AWG

Insulation Diameter :

5.7404 mm

Depth :

10.16mm

Tongue Thickness :

990μm

ECCN Code :

EAR99

Tab Thickness :

0.039 0.99mm

Diameter - Ring ID :

0.171 (4.34mm)

Length :

25.2mm

Feature :

Brazed Seam, Serrated Termination

Number of Holes :

1

Factory Lead Time :

11 Weeks

Diameter - Barrel OD :

0.226 (5.74mm)

Wire Gauge :

10-12 AWG

Terminal and Terminal Block Type :

RING TERMINAL

Wire Gauge (Max) :

10 AWG

Diameter - Barrel ID :

0.129 (3.28mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Type :

Rectangular Tongue

Sealable :

No

Contact Material :

Copper

HTS Code :

8536.90.40.00

ELV :

Compliant

Stud Size :

M4

Insulation :

Non-Insulated

Wire Cross Section :

6.64 mm2

Termination :

Crimp

Diameter - Inside :

3.28 mm

Length - Overall :

0.992 25.20mm

Width - Outer Edges :

0.400 10.16mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Plating :

Tin
