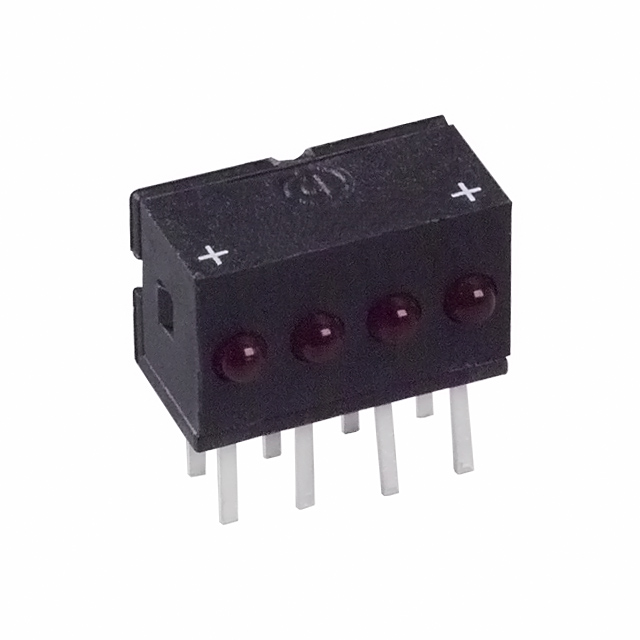

5554009F
Or copy the link below:
- Mfr.Part #
- 5554009F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED CBI 2MM RED 5V RES QUAD TH
- Stock
- 61
- In Stock ：
- 61
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Size :
- 2mm
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole, Right Angle
- Terminal Pitch :
- 2.54mm
- Number of Terminations :
- 8
- Lens Type :
- Clear
- Current :
- 40mA
- Published :
- 2002
- Overall Height :
- 6.35mm
- Operating Temperature (Max) :
- 85°C
- Surface Mount :
- No
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- Number of LEDs :
- 4
- Factory Lead Time :
- 22 Weeks
- Number of Functions :
- 4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Additional Feature :
- High Reliability
- Optoelectronic Device Type :
- SINGLE COLOR LED ARRAY
- Series :
- 555
- T-code :
- T-3/4
- Operating Temperature (Min) :
- -40°C
- Voltage - Rated :
- 5V
- Millicandela Rating :
- 6mcd
- Mounting Feature :
- RADIAL MOUNT
- Forward Voltage-Max :
- 5V
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e1
- Configuration :
- 4 Wide
- Luminous Intensity :
- 0.6 mcd
- Viewing Angle :
- 40°
- Color :
- Red (x 4)
- Shape :
- Round
- Packaging :
- Bulk
- HTS Code :
- 8541.40.20.00
- Wavelength - Peak :
- 650nm
- Datasheets
- 5554009F
5554009F datasheet pdf and LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs product details from Dialight stock available at
