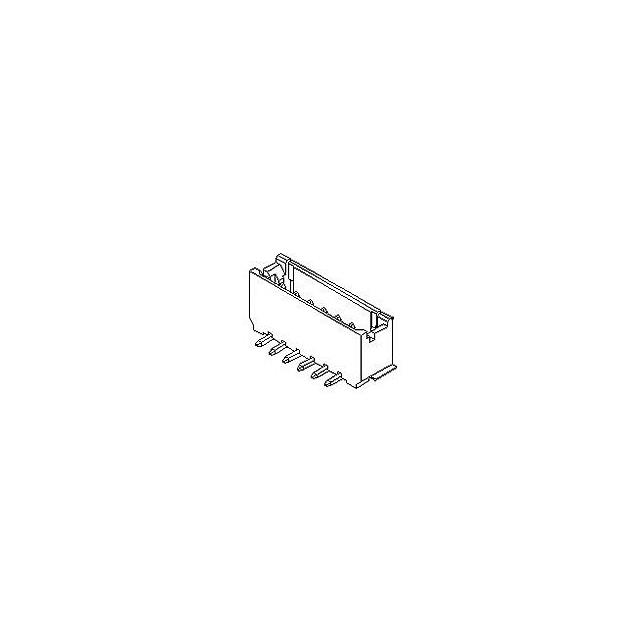

55460-1372

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Published :

2011

Durability :

30 Cycles

DIN Conformance :

No

Current Rating :

1.5A

Number of Rows :

1

UL Flammability Code :

94V-0

Glow Wire Compliant :

Non-Compliant

Pbfree Code :

yes

Contact Material :

Bronze

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Pitch :

2mm

Orientation :

Vertical

Factory Lead Time :

7 Weeks

Termination :

Solder

Max Operating Temperature :

105°C

PCB Contact Pattern :

RECTANGULAR

JESD-609 Code :

e3

Number Of PCB Rows :

1

Contact Pattern :

RECTANGULAR

Color :

Natural

Contact Plating :

Tin

Option :

GENERAL PURPOSE

Number of Positions :

13

IEC Conformance :

No

Contact Style :

SQ PIN-SKT

Contact Resistance :

20mOhm

Connector Type :

Male Pin

Dielectric Withstanding Voltage :

500VDC V

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Body Depth :

0.276 inch

Housing Material :

Thermoplastic

Total Number of Contacts :

13

Reference Standard :

UL

Mount :

Surface Mount

RoHS Status :

RoHS Compliant

Voltage - Rated :

125V

Min Operating Temperature :

-40°C

Filter Feature :

No

Mixed Contacts :

No
