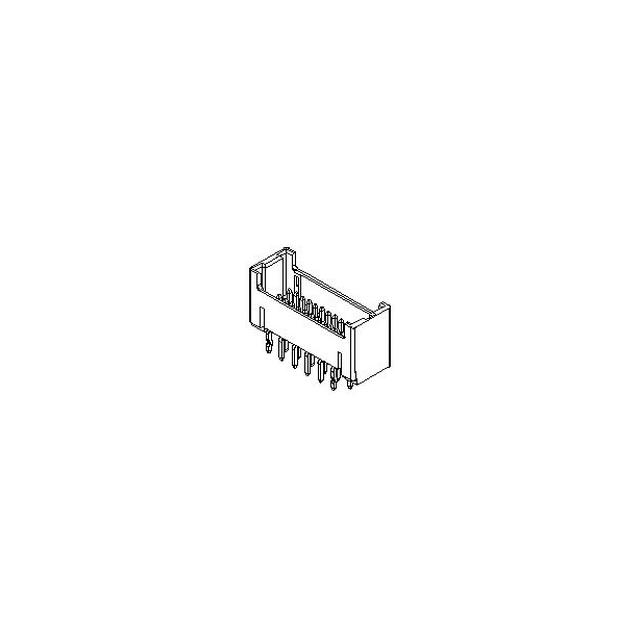

55451-1670
- Mfr.Part #
- 55451-1670
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MINI MI2 STR 2-ROW WAFER ASSY 16
- Stock
- 4,050
- In Stock :
- 4,050
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Body Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Mounting Type :
- BOARD
- Type :
- Shrouded Header
- Packaging :
- Tray
- HTS Code :
- 8536.69.40.40
- Country of Origin :
- MY
- Termination :
- Through Hole
- Housing Color :
- Natural
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Mounting Style :
- Straight
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Contacts :
- 40(POS)
- Connector Type :
- BOARD CONNECTOR
- RoHS :
- Compliant
- Contact Resistance :
- 20 mΩ
- Number of Circuits :
- 40
- Terminal Pitch :
- 1.25 mm
- Min Operating Temperature :
- -40 °C
- Voltage Rating :
- 100 V
- ECCN Code :
- EAR99
- Max Operating Temperature :
- 105 °C
- Pitch (mm) :
- 1.25(mm)
- Orientation :
- Vertical
- Operating Temp Range :
- -40C to 105C
- Number of Contact Rows :
- 2
- Contact Gender :
- Male
- Mount :
- Through Hole
- Total Number of Contacts :
- 16
- Number of Positions :
- 40
- Termination Method :
- Solder
- Glow Wire Compliant :
- Non-Compliant
- UL Flammability Code :
- 94V-0
- Contact Resistance Max :
- 20(mohm)
- MIL Conformance :
- No
- Product Depth (mm) :
- 7.4(mm)
- Termination Type :
- Solder
- Current Rating :
- 1.5 A
- Series :
- *
- Product Length (mm) :
- 15.25(mm)
- Package :
- Bulk
- Product Height (mm) :
- 9.8(mm)
- Contact Plating :
- Tin
- Filter Feature :
- No
- Product Status :
- Active
- Pitch :
- 1.25 mm
- Contact Material :
- NOT SPECIFIED
- Reach Compliance Code :
- Compliant
- REACH SVHC :
- No SVHC
- Housing Material :
- Nylon
- Pbfree Code :
- yes
- Gender :
- HDR
- Voltage Rating Max :
- 100V
- Number of Rows :
- 2
- Current Rating (Max) :
- 1.5/Contact(A)
- Plating :
- Tin
- IEC Conformance :
- No
- Datasheets
- 55451-1670
