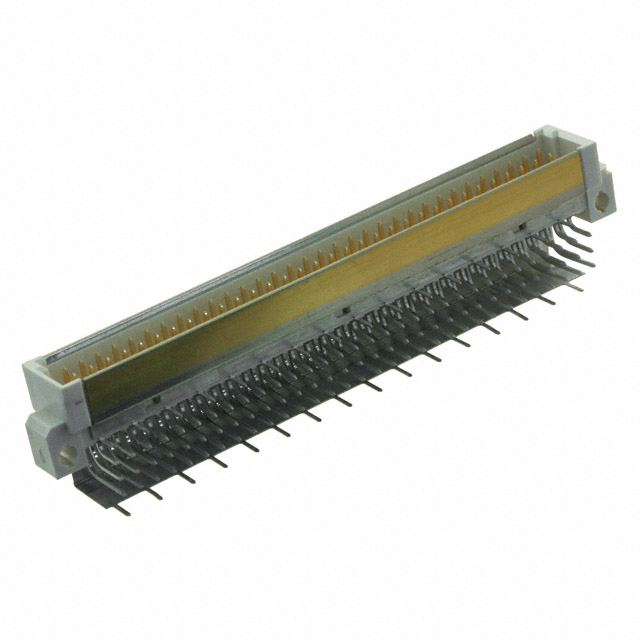

5536146-5
Or copy the link below:
- Mfr.Part #
- 5536146-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIN PLUG 96POS PCB RA GOLD
- Stock
- 39,989
- In Stock ：
- 39,989
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- DIN 41612
- Orientation :
- RIGHT ANGLE
- DIN Conformance :
- yes
- Factory Lead Time :
- 13 Weeks
- Length :
- 93.98mm
- Pbfree Code :
- yes
- Style :
- C
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Pitch :
- 0.100 2.54mm
- Connector Type :
- Plug, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~125°C
- Number of Positions :
- 96
- Published :
- 1999
- Contact Plating :
- Tin
- PCB Mounting Orientation :
- RIGHT ANGLE
- Level, Class :
- 2
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Feature :
- Ground Plate
- Lead Length :
- 3.302mm
- Shielding :
- Shielded
- Housing Color :
- Grey
- Housing Material :
- Polymer
- Make First / Break Last :
- No
- Mounting Type :
- Through Hole, Right Angle
- Series :
- Eurocard
- Number of Rows :
- 3
- Material - Insulation :
- Polymer Thermoplastic, Glass Filled
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Total Number of Contacts :
- 96
- Filter Feature :
- No
- Lead Free :
- Lead Free
- ELV :
- Compliant
- Packaging :
- Bulk
- Datasheets
- 5536146-5
5536146-5 Documents
5536146-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available at Xinshop
