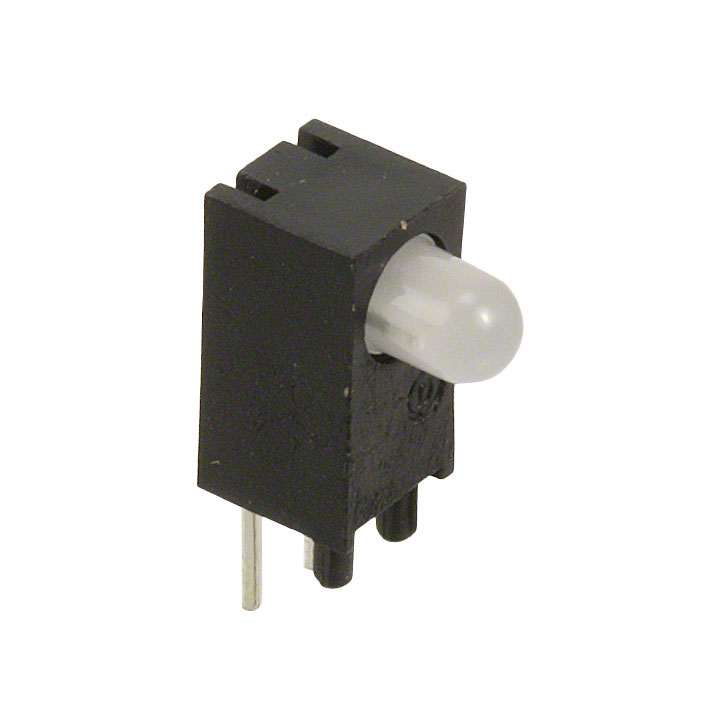

5513003F

Manufacturer :

Dialight

Product Category :

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Forward Voltage-Max :

2V

Surface Mount :

No

Size :

3mm

Operating Temperature (Min) :

-55°C

Color :

Green, Red

Current :

10mA

Series :

551

Pbfree Code :

yes

Millicandela Rating :

10mcd Green, 4.7mcd Red

Lens Type :

Clear

Packaging :

Bulk

Voltage - Rated :

2.1V Green 2V Red

Overall Height :

8.64mm

Mounting Feature :

RADIAL MOUNT

Additional Feature :

High Reliability

RoHS Status :

ROHS3 Compliant

Wavelength - Peak :

565nm 635nm

Number of Terminations :

2

JESD-609 Code :

e4

Operating Temperature (Max) :

100°C

HTS Code :

8541.40.20.00

T-code :

T-1

Shape :

Round

Factory Lead Time :

10 Weeks

Number of Functions :

1

Mounting Type :

Through Hole, Right Angle

Terminal Pitch :

2.54mm

Optoelectronic Device Type :

DUAL COLOR LED

Configuration :

Single

Viewing Angle :

50°

Published :

2002

Luminous Intensity :

4.7/10.0 mcd
