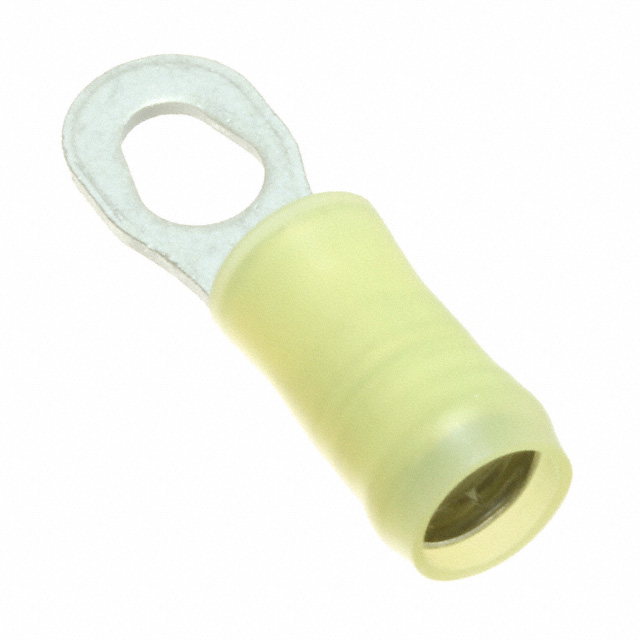

54773-1
Or copy the link below:
- Mfr.Part #
- 54773-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING MULT STUD 10-12AWG
- Stock
- 215
- In Stock ：
- 215
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Published :
- 1997
- Stud/Tab Size :
- 6 8 10 Stud
- Contact Material :
- Copper
- Wire Gauge (Max) :
- 12 AWG
- Feature :
- Serrated Termination
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Tongue Thickness :
- 774.7μm
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Pbfree Code :
- yes
- Insulated Wire Support :
- yes
- Heavy Duty :
- No
- Factory Lead Time :
- 17 Weeks
- Terminal Gender :
- FEMALE
- Length :
- 29.591mm
- Stud Diameter :
- 4.17 mm
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Wire Gauge (Min) :
- 10 AWG
- Lead Free :
- Not Applicable
- Series :
- PIDG
- Width - Outer Edges :
- 0.325 8.26mm
- Thickness :
- 0.039 0.99mm
- Insulation Diameter :
- 0.150 ~ 0.230 (3.81mm ~ 5.84mm)
- Color :
- Yellow
- Insulation :
- Insulated
- Length - Overall :
- 1.165 29.59mm
- ECCN Code :
- EAR99
- Wire Gauge :
- 10-12 AWG
- Terminal Type :
- Multi-Stud
- Material - Insulation :
- Polyamide (PA), Nylon
- Mount :
- Free Hanging
- Termination :
- Crimp
- HTS Code :
- 8536.90.40.00
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 300V
- Datasheets
- 54773-1
54773-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
