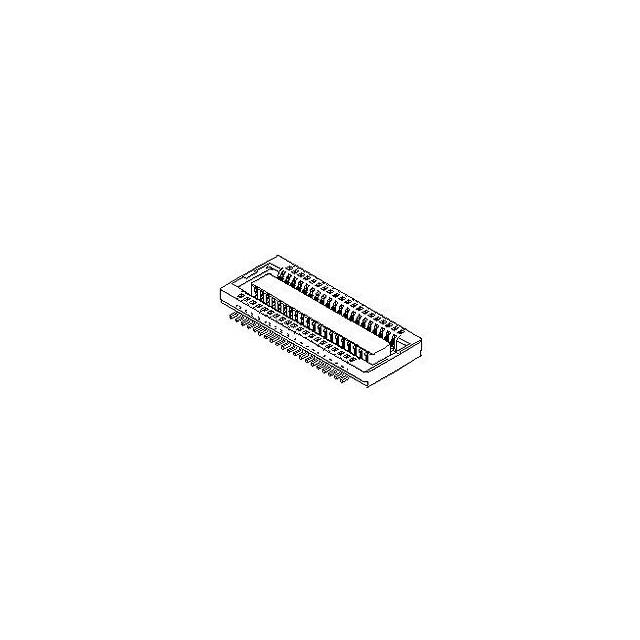

54722-0168
Or copy the link below:
- Mfr.Part #
- 54722-0168
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 0.50MM PITCH SLIMSTACK RECEPTACL
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Termination :
- Solder
- Number of Rows :
- 2
- Lead Free :
- Lead Free
- Row Spacing - Mating :
- 1.65 mm
- Contact Material :
- Bronze
- Pitch :
- 500μm
- Stack Height (Mating) :
- 1.5mm
- Min Operating Temperature :
- -25°C
- Lead Pitch :
- 500μm
- Voltage - Rated :
- 50V
- Current Rating :
- 500mA
- Connector Type :
- Receptacle
- Insulation Resistance :
- 100MOhm
- Housing Material :
- Thermoplastic
- Number of Contacts :
- 16
- Contact Resistance :
- 40mOhm
- Published :
- 2004
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tape and Reel (TR)
- Number of Positions :
- 16
- Max Operating Temperature :
- 85°C
- Mount :
- Surface Mount
- Contact Plating :
- Gold
- Stack Height :
- 1.5mm
- Factory Lead Time :
- 11 Weeks
- Orientation :
- Straight
- Gender :
- Receptacle
- Voltage - Rated DC :
- 50V
- Datasheets
- 54722-0168
54722-0168 Documents
Receptacle Tape & Reel (TR) 2 Rows 500μm 16 Positions Solder Bronze
54722-0168 Overview
The product is packaged in Receptacle.It has been determined that a Tape & Reel (TR) case is necessary to package the product.For mounting this component, a Surface Mount socket is required.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.
54722-0168 Features
Package / Case: Tape & Reel (TR)
Max Operating temperature at -25°C
54722-0168 Applications
There are a lot of Molex
54722-0168 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
