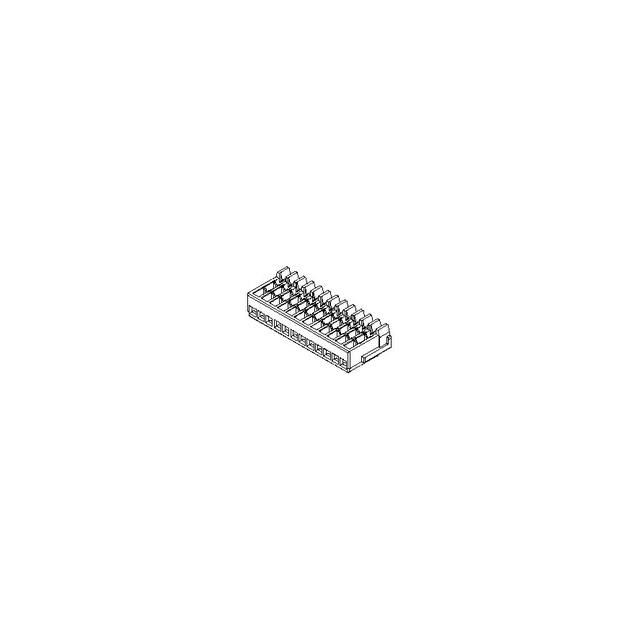

54596-1010

Manufacturer :

Molex

Product Category :

Free Hanging, Panel Mount

Mounting :

Cable Mount

Number of Contact Rows :

1

Operating Temp Range :

-40C to 105C

Contact Pattern :

RECTANGULAR

Glow Wire Compliant :

Non-Compliant

Rated Current (Signal) :

1.5 A

Reference Standard :

UL

MIL Conformance :

No

Housing Color :

Natural

UL Flammability Code :

94V-0

DIN Conformance :

No

Country of Origin :

SG

Body Depth :

0.236 inch

Mounting Style :

CABLE

Number of Contacts :

10

Wire Gauge (Min) :

28 AWG

Current Rating :

1.5 A

Pitch :

1.2500 mm

Termination :

IDC

Termination Method :

IDT

Reach Compliance Code :

Compliant

Option :

GENERAL PURPOSE

Insulation Diameter-Min :

0.031 inch

Termination Type :

IDC

Connector Type :

BOARD CONNECTOR

Subcategory :

Headers and Edge Type Connectors

JESD-609 Code :

e3

Package :

Bulk

Withdrawl Force-Min :

.139 N

Product Length (mm) :

13.75(mm)

Body/Shell Style :

Receptacle

Base/Housing Material :

Nylon

Orientation :

RIGHT ANGLE

Wire Gauge (Max) :

26 AWG

Product Depth (mm) :

3.5(mm)

Contact Plating :

Tin

Polarization Key :

POLARIZED RIB(S)

Operating Temperature :

-40 to 105 °C

Contact Finish Termination :

Tin (Sn)

Insertion Force-Max :

4.8928 N

Manufacturer :

Molex

Number of Rows :

1

Contact Resistance :

20 mΩ

Mixed Contacts :

No

Contact Style :

SQ PIN-SKT

Body Orientation :

RIGHT ANGLE

Max Operating Temperature :

105 °C

Body Breadth :

0.138 inch

Voltage Rating Max :

100V

Packaging :

Bag

Mating Contact Pitch :

0.049 inch

Number of Positions :

10

Product Length :

13.75 mm

Insulation Resistance :

1000000000 Ω

Series :

*

Housing Material :

Nylon

RoHS :

Compliant

Insulator Color :

Natural

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Plating :

Tin

Additional Feature :

COMPATIBLE CONTACTS: 54597-1000; 54597-1200

Number of Circuits :

10

Pbfree Code :

yes

Min Operating Temperature :

-40 °C

Reliability :

COMMERCIAL

Pitch (mm) :

1.25(mm)

Contact Design :

PREASSEM CONN

Dielectric Withstanding Voltage :

500VAC V

HTS Code :

8536.69.40.40

Mount :

CABLE

Type :

IDC

Product Status :

Active

Filter Feature :

No

Current Rating (Max) :

1.5/Contact(A)

Contact Material :

Phosphor Bronze

Total Number of Contacts :

10

REACH SVHC :

Unknown

Durability :

30 Cycles

IEC Conformance :

No

ECCN Code :

EAR99

Product Height (mm) :

6(mm)

Contact Gender :

FEMALE

Mounting Type :

CABLE

Gender :

Receptacle

Voltage Rating :

100 V
