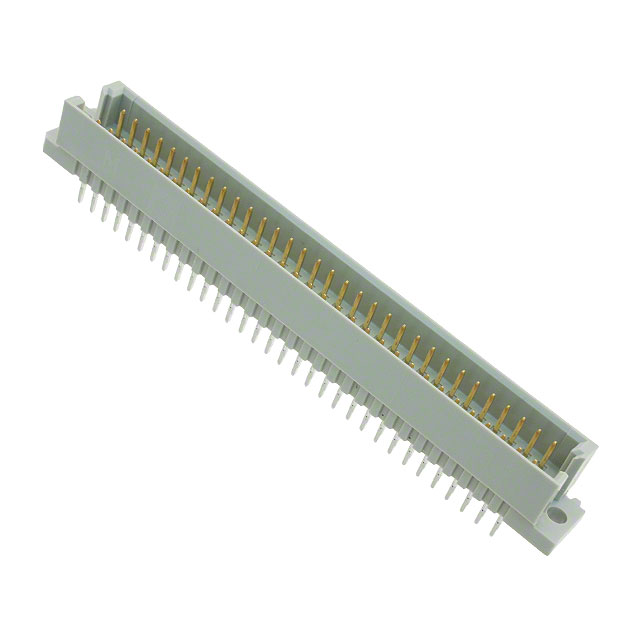

536098-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1000000000000Ohm

Current Rating :

3A

Pbfree Code :

yes

Termination Post Length :

6.35mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Termination :

Press-Fit

Sealable :

No

Published :

1999

Make First / Break Last :

yes

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Factory Lead Time :

25 Weeks

Level, Class :

2

Number of Positions :

96

Contact Finish :

Gold

Reference Standard :

UL, CSA

Number of Signal Positions :

64

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Filter Feature :

No

Total Number of Contacts :

64

Housing Color :

Grey

Length :

95mm

PCB Thickness :

2.3622mm

Name of Rows Loaded :

A,C

Number of Rows :

3

MIL Conformance :

No

Number Of PCB Rows :

2

Max Current Rating :

3A

Contact Material :

Bronze

Style :

R

Pitch :

0.100 2.54mm

IEC Conformance :

yes

Depth :

11.1mm

Circuit Application :

Signal

Housing Material :

Polyester

Number of Columns :

32

Contact Resistance :

15mOhm

Length - Tail :

5.59mm

DIN Conformance :

yes

Dielectric Withstanding Voltage :

1000VAC V

Series :

Eurocard

Connector Type :

Plug, Male Pins

Mounting Type :

Through Hole

Height :

11.489512mm

Plating Thickness :

127 nm

Shielding :

Unshielded

Row Spacing :

2.54 mm

ELV :

Non-Compliant

Lead Length :

6.35mm

PCB Mounting Orientation :

Vertical

Mixed Contacts :

No

Material - Insulation :

Polyester, Glass Filled
