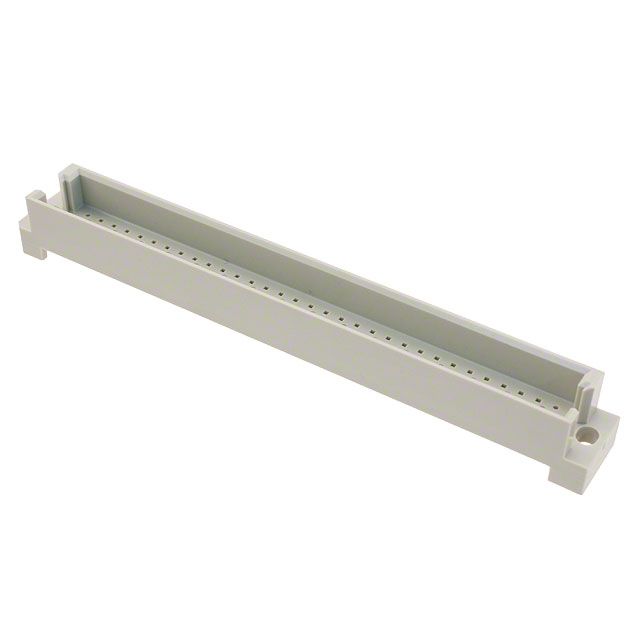

535074-1
Or copy the link below:
- Mfr.Part #
- 535074-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SHROUD DIN 41612 96POS GRY
- Stock
- 1,738
- In Stock ：
- 1,738
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Row Spacing :
- 2.54 mm
- Series :
- Eurocard
- Factory Lead Time :
- 26 Weeks
- Lead Free :
- Lead Free
- Length :
- 94.99mm
- Gender :
- FEMALE
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL, CSA
- Operating Temperature (Min) :
- -55°C
- Mount :
- Through Hole
- Operating Temperature (Max) :
- 125°C
- Number of Rows :
- 3
- Published :
- 1999
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Connector Style :
- DIN 41612, Type C, Type R
- Contact Plating :
- Gold
- Housing Material :
- Polyester
- Width :
- 11.1mm
- Body/Shell Style :
- Receptacle
- Connector Type :
- Shroud for Male Pins
- Pbfree Code :
- yes
- Termination :
- Solder
- Pitch :
- 0.100 2.54mm
- Lead Pitch :
- 2.54mm
- PCB Thickness :
- 3.175mm
- Color :
- Gray
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Note :
- Contacts Not Included
- Total Number of Contacts :
- 0
- Mating Alignment :
- Without
- Mounting Type :
- Through Hole
- Number of Columns :
- 32
- REACH SVHC :
- No SVHC
- Depth :
- 11.43mm
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 96
- Orientation :
- Straight
- Housing Color :
- Grey
- Radiation Hardening :
- No
- DIN Conformance :
- yes
- PCB Contact Pattern :
- RECTANGULAR
- Datasheets
- 535074-1
535074-1 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
