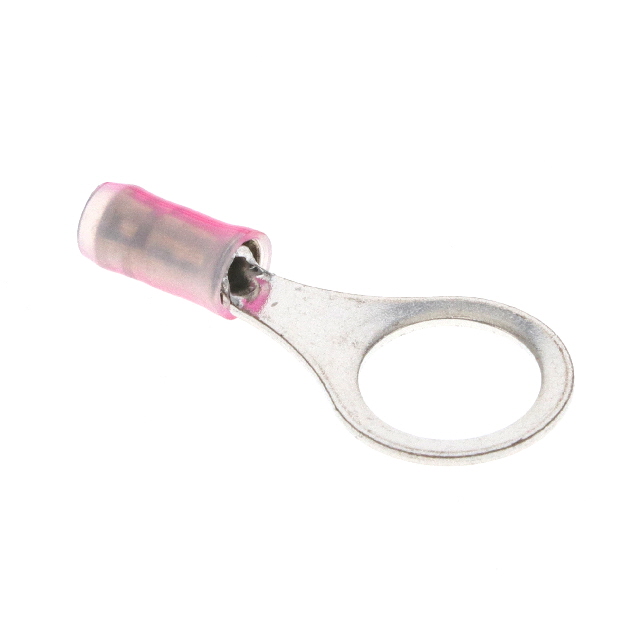

53412-1
Or copy the link below:
- Mfr.Part #
- 53412-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #3/8
- Stock
- 1,976
- In Stock ：
- 1,976
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Terminal and Terminal Block Type :
- RING TERMINAL
- Insulation Diameter :
- 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
- Mount :
- Free Hanging
- Wire Gauge :
- 16-22 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Plating Thickness :
- 2.54μm
- Factory Lead Time :
- 18 Weeks
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Tongue Thickness :
- 790μm
- Contact Finish :
- Tin-Lead
- Packaging :
- Bulk
- Number of Holes :
- 1
- Wire Gauge (Min) :
- 16 AWG
- Contact Material :
- Copper
- Plating :
- Lead, Tin
- ELV :
- Non-Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2009
- Length - Overall :
- 1.218 30.94mm
- Stud Diameter :
- 9.91 mm
- Series :
- PIDG
- Body Plating :
- Tin
- Insulated Wire Support :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Length :
- 30.9372mm
- Heavy Duty :
- No
- Terminal Type :
- Circular
- Stud/Tab Size :
- 3/8 Stud
- Termination :
- Crimp
- Insulation :
- Insulated
- HTS Code :
- 8536.90.40.00
- Material Thickness :
- 790μm
- ECCN Code :
- EAR99
- RoHS Status :
- Non-RoHS Compliant
- Color :
- Natural, Red Stripe
- Width - Outer Edges :
- 0.531 13.49mm
- Feature :
- Radiation Resistant, Serrated Termination
- Lead Free :
- Not Applicable
- Thickness :
- 0.031 0.79mm
- Contact Plating :
- Lead, Tin
- Wire Gauge (Max) :
- 22 AWG
- Datasheets
- 53412-1
53412-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
