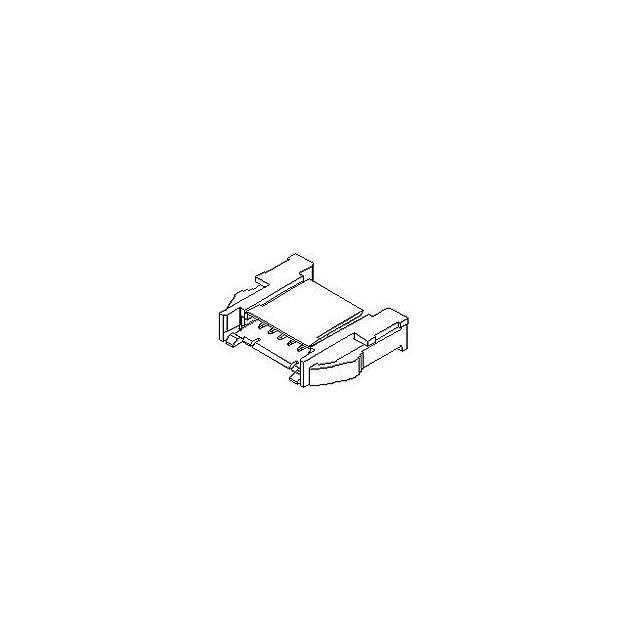

53358-1040

Manufacturer :

Molex

Product Category :

Rectangular Connector Adapters

Current Rating (Max) :

2/Contact(A)

Reference Standard :

UL, CSA

Mounting Option 1 :

LOCKING

Number of Positions :

10

Subcategory :

Headers and Edge Type Connectors

UL Flammability Code :

94V-0

Product Depth (mm) :

18.6(mm)

Factory Lead Time :

12 Weeks

Housing Color :

White

Orientation :

Straight

Contact Resistance :

5 mΩ

Connector Type :

BOARD CONNECTOR ADAPTER

HTS Code :

8536.69.80.00

Option :

GENERAL PURPOSE

Straight Connection :

yes

Length :

32.1 mm

Contact Gender :

MALE-MALE

Mounting Type :

CABLE

Mounting Option 2 :

Friction Lock

Body Orientation :

Straight

Product Height (mm) :

5.65(mm)

Gender :

M/M

Body/Shell Style :

Receptacle

Mount :

Panel, Snap in

Number of Contacts :

10(POS)

Total Number of Contacts :

10

Polarization Key :

POLARIZED HOUSING

Plating :

Tin

Contact Pattern :

RECTANGULAR

Contact Style :

SQ PIN-SKT

Type :

Coupler Header

Reach Compliance Code :

Compliant

Dielectric Withstanding Voltage :

500VAC V

Min Operating Temperature :

-40 °C

Mounting Style :

Panel

IEC Conformance :

No

Product Length (mm) :

32.1(mm)

Current Rating :

2 A

Insulator Color :

White

Reliability :

COMMERCIAL

MIL Conformance :

No

JESD-609 Code :

e3

Pitch :

2 mm

Number of Circuits :

9

Housing Material :

Polybutylene

Max Operating Temperature :

105 °C

Rated Current (Signal) :

2 A

Series :

*

Contact Material :

Brass

Depth :

18.6 mm

Number of Rows :

1

Mating Contact Pitch :

0.079 inch

Package :

Box

Contact Design :

PREASSEM CONN

Pitch (mm) :

2(mm)

Manufacturer :

Molex

Mixed Contacts :

No

Insulation Resistance :

1000000000 Ω

RoHS :

Compliant

ECCN Code :

EAR99

Termination Type :

Crimp

Pbfree Code :

yes

Country of Origin :

JP

Operating Temp Range :

-40C to 105C

Packaging :

Bag

DIN Conformance :

No

Additional Feature :

PANEL MOUNTABLE

Contact Finish Termination :

Tin (Sn)

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Body Breadth :

0.222 inch

Contact Resistance Max :

40(mohm)

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Contact Plating :

Tin

Product Status :

Active

Body Depth :

0.732 inch

Filter Feature :

No

Number of Contact Rows :

1
