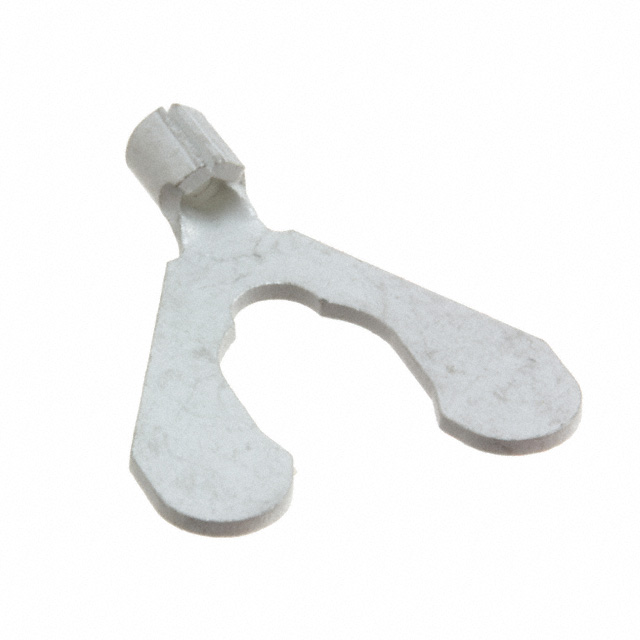

53235-2
Or copy the link below:
- Mfr.Part #
- 53235-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 16-22AWG #1/4
- Stock
- 288
- In Stock ：
- 288
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- ELV :
- Compliant
- Feature :
- Serrated Termination
- Tongue Thickness :
- 790μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Ring Center to Termination :
- 0.343 8.71mm
- Insulation :
- Non-Insulated
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Factory Lead Time :
- 15 Weeks
- Terminal Type :
- Spring, Snap
- HTS Code :
- 8536.90.40.00
- Heavy Duty :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Length :
- 20.574mm
- Diameter - Inside :
- 1.65 mm
- RoHS Status :
- RoHS Compliant
- Width - Outer Edges :
- 0.625 15.88mm
- Mount :
- Free Hanging
- Length - Termination :
- 0.181 4.60mm
- Mounting Type :
- Free Hanging (In-Line)
- Length - Overall :
- 0.810 20.57mm
- Lead Free :
- Not Applicable
- Stud Size :
- M6
- Pbfree Code :
- yes
- Wire Gauge :
- 16-22 AWG
- Stud/Tab Size :
- 1/4 Stud
- Material Thickness :
- 840μm
- ECCN Code :
- EAR99
- Tongue Inside Opening :
- 0.212 (5.38mm)
- Contact Material :
- Phosphor Bronze
- Stud Diameter :
- 6.35 mm
- Wire Gauge (Max) :
- 22 AWG
- Series :
- Budget
- Packaging :
- Bulk
- Material :
- Bronze
- Wire Gauge (Min) :
- 16 AWG
- Termination :
- Crimp
- Contact Finish :
- Tin
- Published :
- 2005
- Datasheets
- 53235-2
