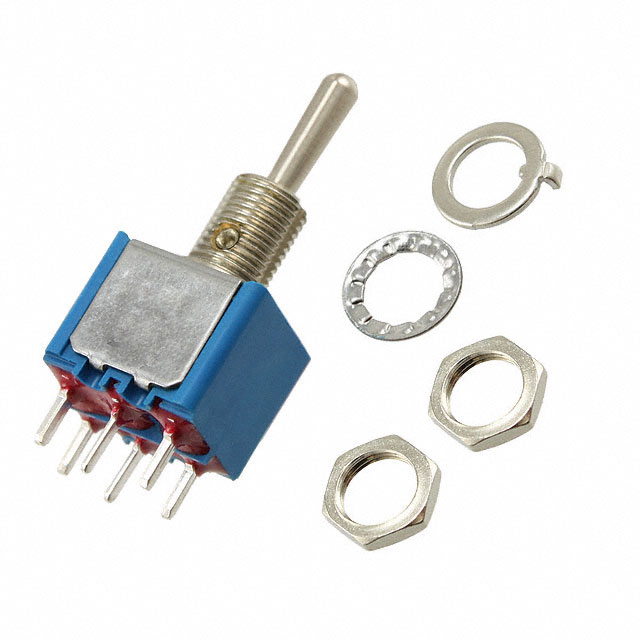

5249AB
Or copy the link below:
- Mfr.Part #
- 5249AB
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 6A 125V
- Stock
- 353
- In Stock ：
- 353
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Operating Temperature :
- -40°C~85°C
- JESD-609 Code :
- e4
- Contact Current(AC)-Max :
- 6A
- Actuator Material :
- Brass, Nickel Plated
- Packaging :
- Tray
- Illumination Type :
- Illuminated, Non-Illuminated
- Panel Cutout Dimensions :
- Circular - 6.50mm Dia
- Body Breadth :
- 12 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Switch Function :
- On-Off-On
- Voltage - Rated DC :
- 30V
- HTS Code :
- 8536.50.90.65
- Voltage - Rated AC :
- 125V
- Mount :
- Panel
- Max Voltage Rating (DC) :
- 30V
- RoHS Status :
- ROHS3 Compliant
- Contact (AC) Max Rating R Load :
- 6A@125VAC
- Current Rating (Amps) :
- 6A AC 4A DC
- Circuit :
- DPDT
- Termination Style :
- PC Pin
- Body Height :
- 13.3mm
- Termination :
- PC Pin
- Pbfree Code :
- yes
- Max Voltage Rating (AC) :
- 250V
- Bushing Thread :
- 1/4-40
- Feature :
- Epoxy Sealed Terminals
- Mounting Type :
- Panel Mount
- Current Rating :
- 4A
- Contact (DC) Max Rating R Load :
- 4A@30VDC
- Sealing :
- EPOXY TERMINAL SEALED
- Electrical Life :
- 50,000 Cycles
- Body Length or Diameter :
- 13.2mm
- Mechanical Life :
- 100000 cycles
- Factory Lead Time :
- 5 Weeks
- Orientation :
- Straight
- Contact Current(DC)-Max :
- 4A
- Switch Type :
- TOGGLE SWITCH
- Contact Resistance :
- 10MOhm
- Actuator Length :
- 10.50mm
- Contact Material :
- Silver
- Actuator Type :
- Standard Round
- ECCN Code :
- EAR99
- Illumination :
- Non-Illuminated
- Series :
- 5000
- Housing Material :
- Stainless Steel
- Datasheets
- 5249AB
5249AB datasheet pdf and Toggle Switches product details from APEM Inc. stock available at
