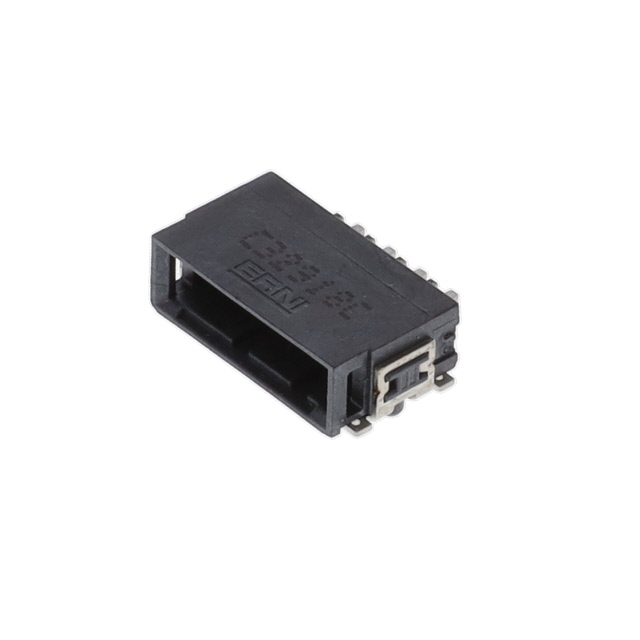

524600

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

Insulation Color :

Black

Product Status :

Active

Contact Finish - Post :

Tin

Contact Material :

COPPER ALLOY

Fastening Type :

Latch Holder

Contact Type :

Male Pin

Contact Finish Thickness - Mating :

-

Ingress Protection :

-

Contact Length - Post :

-

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Applications :

-

Contact Finish Thickness - Post :

157.5µin (4.00µm)

Mated Stacking Heights :

-

Style :

Board to Cable/Wire

Row Spacing - Mating :

-

Number of Rows :

1

Base Product Number :

-

Material Flammability Rating :

UL94 V-0

Overall Contact Length :

-

Number of Positions :

4

Insulation Height :

0.199 (5.05mm)

Contact Shape :

Square

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Type :

Surface Mount, Right Angle

Termination :

Solder

Contact Length - Mating :

0.161 (4.09mm)

Features :

Board Guide, Solder Retention

Series :

MAXIBRIDGE

Shrouding :

Shrouded - 4 Wall

Voltage Rating :

-

Insulation Material :

Liquid Crystal Polymer (LCP)

Pitch - Mating :

0.100 (2.54mm)

Connector Type :

Header

Operating Temperature :

-55°C ~ 150°C

Current Rating (Amps) :

12A per Contact
