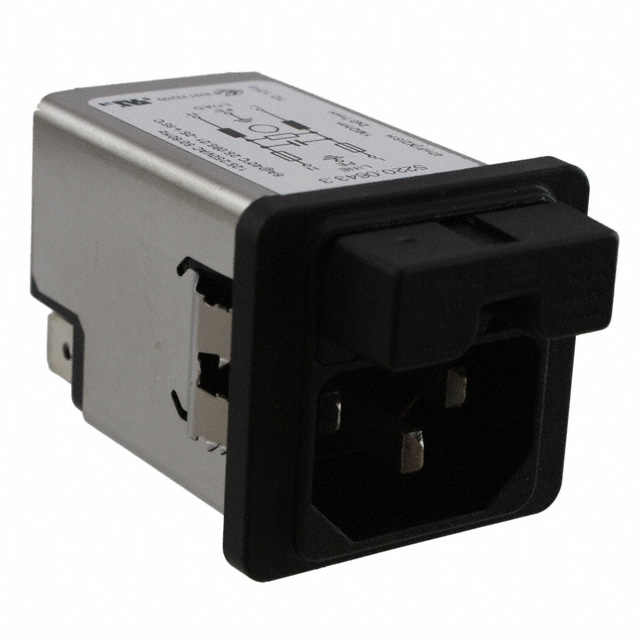

5220.0223.3

Share

Or copy the link below:

Mfr.Part #
5220.0223.3
Manufacturer
SCHURTER
Package / Case
Module
Datasheet
Download
Description
PWR ENT MOD RCPT IEC320-C14 PNL
Stock
604
In Stock :
604

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
SCHURTER
Product Category :
Power Entry Modules (PEM)
Factory Lead Time :
10 Weeks
Voltage - IEC :
250VAC
Connector Style :
IEC 320-C14
Connector Type :
Receptacle, Male Blades - Module
Fuse Holder, Drawer :
Fuse Holder
Max Voltage Rating (AC) :
250V
Body/Shell Style :
Socket
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Voltage - Rated AC :
250V
Current :
2A
Ingress Protection :
IP40
Panel Cutout Dimensions :
Rectangular - 29.00mm x 32.00mm
Flammability Rating :
UL94 V-0
Mount :
Flanges, Panel, Screw
Number of Positions :
3
Package / Case :
Module
ECCN Code :
EAR99
Weight :
56.699046g
Shell Material :
POLYETHYLENE
Lead Free :
Lead Free
Orientation :
Straight
IEC Conformance :
yes
Filter Type :
Filtered (EMI, RFI) - Commercial, Medical
Approval Agency :
cULus, ENEC
Termination :
Quick Connect - 0.250 (6.3mm)
Contact Material :
NOT SPECIFIED
Series :
5220
MIL Conformance :
No
Min Operating Temperature :
-25°C
Packaging :
Bulk
Pbfree Code :
yes
REACH SVHC :
No SVHC
Gender :
Male
Depth :
57.6mm
Moisture Sensitivity Level (MSL) :
Vendor Undefined
Voltage - Rated DC :
250V
Max Current Rating :
2A
Fuse :
yes
Mounting Type :
Panel Mount, Flange
Coupling Type :
Snap
Accomodates a Fuse :
Yes (Fuse Not Included)
Width :
34mm
Max Operating Temperature :
85°C
Current Rating :
2A
Voltage - UL :
125VAC
Number of Ports :
1
DIN Conformance :
No
Total Number of Contacts :
3
RoHS Status :
ROHS3 Compliant
Length :
34mm
Contact Finish - Mating :
NOT SPECIFIED
Option :
GENERAL PURPOSE
Material Flammability Rating :
UL94 V-0
Height :
44mm
Datasheets
5220.0223.3
Introducing Power Entry Modules (PEM) SCHURTER 5220.0223.3 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:Module, Mounting Type:Panel Mount, Flange, 5220.0223.3 pinout, 5220.0223.3 datasheet PDF, 5220.0223.3 amp .Beyond Power Entry Modules (PEM) SCHURTER 5220.0223.3 ,we also offer GSP1.8101.1, GSP1.9103.1, 6160.0003, Our vast inventory has you covered. Contact us now for immediate solutions.
