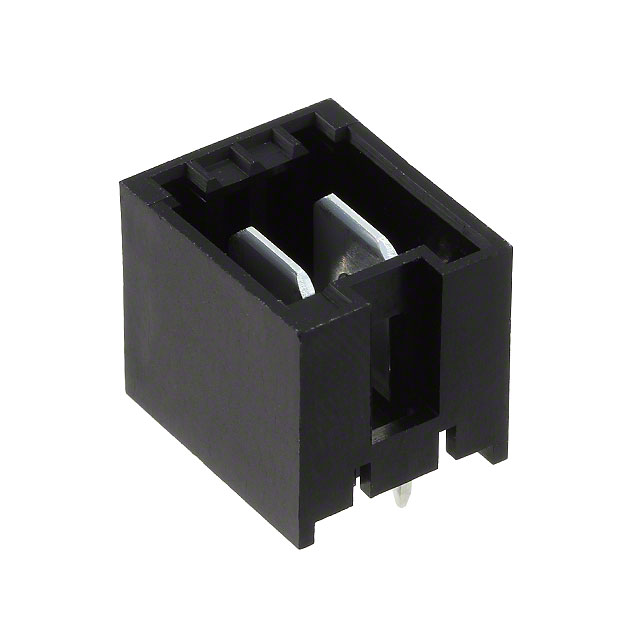

521755-2
Or copy the link below:
- Mfr.Part #
- 521755-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 5MM
- Stock
- 26,868
- In Stock ：
- 26,868
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- Factory Lead Time :
- 12 Weeks
- DIN Conformance :
- yes
- Contact Gender :
- Male
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Applications :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Fastening Type :
- Latch Holder
- Insulation Height :
- 0.504 12.80mm
- Terminal Pitch :
- 5mm
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- HTS Code :
- 8536.69.40.40
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Published :
- 2009
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Termination :
- Solder
- Packaging :
- Bulk
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Additional Feature :
- LATCHING, POLARIZED
- Mixed Contacts :
- No
- Material :
- Nylon
- Voltage - Rated :
- 250VAC
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- JESD-609 Code :
- e4
- Operating Temperature :
- -40°C~120°C
- Number of Positions :
- 2
- Feature :
- Board Guide
- Contact Finish - Mating :
- Silver
- Number of Rows :
- 1
- Contact Shape :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- MIL Conformance :
- No
- Color :
- Black
- Contact Type :
- Tab
- Pitch - Mating :
- 0.197 5.00mm
- Datasheets
- 521755-2
521755-2 Documents
1-Row Header Solder Brass Bulk Through Hole Silver Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
521755-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.There are also other features such as LATCHING, POLARIZED, to name only a few.A possible application of the device would be General Purpose.With its Board Guide feature, it is more powerful in many ways.The device is operating at -40°C~120°C Operating Temperature.
521755-2 Features
521755-2 Applications
There are a lot of TE Connectivity AMP Connectors
521755-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
