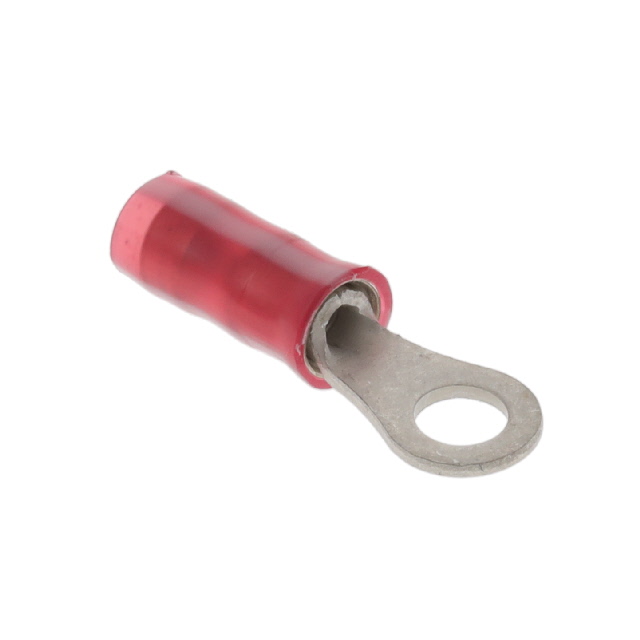

51863-7
Or copy the link below:
- Mfr.Part #
- 51863-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 18AWG #6 CRIMP
- Stock
- 4,255
- In Stock ：
- 4,255
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Length :
- 19.86mm
- Published :
- 2011
- Stud Diameter :
- 3.68 mm
- Width - Outer Edges :
- 0.250 6.35mm
- Thickness :
- 0.031 0.79mm
- Heavy Duty :
- No
- ELV :
- Compliant
- Wire Cross Section :
- 0.96 mm2
- Feature :
- Insulation Restriction
- Length - Overall :
- 0.844 21.44mm
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Wire/Cable Diameter :
- 3.175 mm
- HTS Code :
- 8536.90.40.00
- Stud/Tab Size :
- 6 Stud
- Number of Holes :
- 1
- Packaging :
- Tape and Reel (TR)
- Wire Gauge :
- 18 AWG
- Insulated Wire Support :
- yes
- Terminal Type :
- Circular
- Series :
- PIDG
- Diameter - Inside :
- 7.112 mm
- Insulation Diameter :
- 0.038 ~ 0.110 (0.97mm ~ 2.79mm)
- Pbfree Code :
- yes
- Contact Finish :
- Tin
- Tongue Thickness :
- 790μm
- Color :
- Red, White Stripe
- Factory Lead Time :
- 4 Weeks
- Stud Size :
- M3.5
- Contact Material :
- Copper
- Material - Insulation :
- Polyamide (PA), Nylon
- Terminal Gender :
- FEMALE
- Terminal and Terminal Block Type :
- RING TERMINAL
- Insulation :
- Insulated
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- 51863-7
51863-7 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
