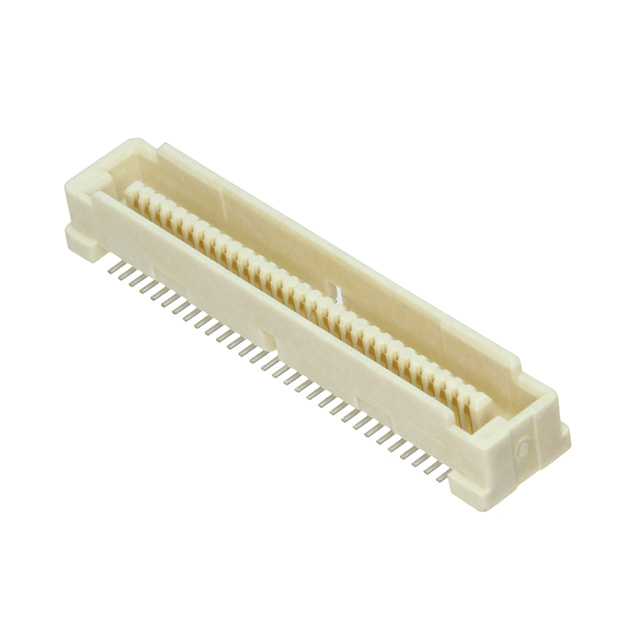

5177984-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Voltage - Rated :

100V

Mixed Contacts :

No

Lead Free :

Lead Free

Series :

Free Height (FH)

Contact Resistance :

30mOhm

Number of Rows :

2

Sealable :

No

ECCN Code :

EAR99

Stack Height (Mating) :

5mm 9mm 13mm 17mm

Lead Pitch :

800μm

Max Voltage Rating (AC) :

100V

Contact Pattern :

RECTANGULAR

Max Operating Temperature :

125°C

Contact Shape :

Square

Length :

29.8mm

RoHS Status :

RoHS Compliant

Reliability :

COMMERCIAL

Factory Lead Time :

9 Weeks

Option :

GENERAL PURPOSE

Mating Alignment :

With

Published :

1997

Orientation :

Vertical

Contact Gender :

Male

Housing Material :

Polymer

Contact Finish Thickness :

8.00μin 0.203μm

MIL Conformance :

No

Number of Conductors :

ONE

Rated Current (Signal) :

0.5A

Reference Standard :

UL

Plating Thickness :

8μin

ELV :

Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Circuit Application :

Signal

Contact Finish :

Gold

Mount :

Surface Mount

REACH SVHC :

No SVHC

Connector Type :

Plug, Center Strip Contacts

Termination :

SMD/SMT

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Pitch :

0.031 0.80mm

Contact Finish Thickness - Mating :

200 nm

Housing Color :

Natural

Number of Positions :

60

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Packaging :

Tube

Row Spacing :

2.4 mm

PCB Mount Retention :

Without

Insulation Resistance :

2MOhm

Flammability Rating :

UL94 V-0

Total Number of Contacts :

60

Filter Feature :

No

Min Operating Temperature :

-40°C

Pbfree Code :

yes

Contact Material :

Brass

Operating Supply Voltage :

100V

Mounting Type :

Surface Mount

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Durability :

100 Cycles

Voltage - Rated AC :

100V

Insertion Force-Max :

.8896 N

DIN Conformance :

No

Contact Current Rating :

500mA

Feature :

Board Guide

Preloaded :

yes

Height Above Board :

0.181 4.60mm

Depth :

6mm

Height :

5mm

Withdrawl Force-Min :

.0973 N

Current Rating :

500mA

Stack Height :

8.9916mm

Number Of PCB Rows :

2

Insulation Material :

Thermoplastic

Dielectric Withstanding Voltage :

500VAC V
