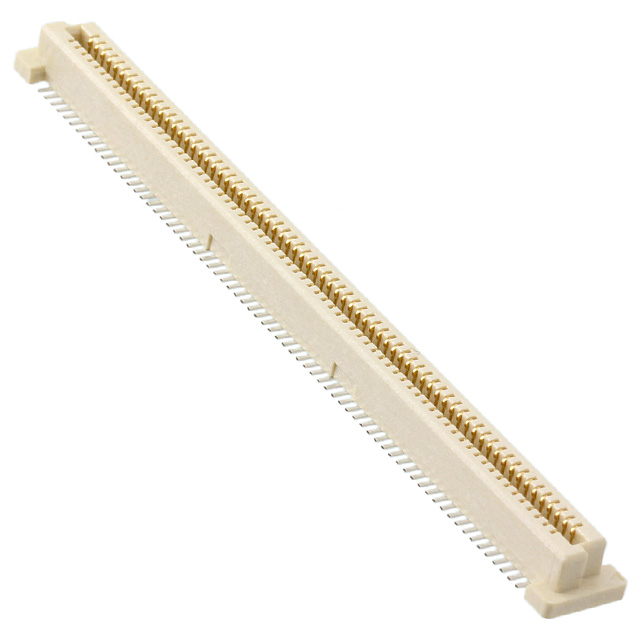

5177983-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Option :

GENERAL PURPOSE

Rated Current (Signal) :

0.5A

Dielectric Withstanding Voltage :

500VAC V

Series :

Free Height (FH)

Contact Finish Thickness :

8.00μin 0.203μm

Pbfree Code :

yes

Reference Standard :

UL, CSA

Preloaded :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

Housing Material :

Polymer

Voltage - Rated :

100V

Total Number of Contacts :

140

Max Voltage Rating (AC) :

100V

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Max Operating Temperature :

125°C

Polarization Key :

ENDS

Min Operating Temperature :

-40°C

Durability :

100 Cycles

Current Rating :

500mA

IEC Conformance :

No

Orientation :

Vertical

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Published :

1997

Contact Current Rating :

500mA

Length :

61.8mm

Contact Shape :

Square

Height :

5mm

Stack Height (Mating) :

5mm 6mm 7mm 8mm

Stack Height :

6mm

Flammability Rating :

UL94 V-0

Operating Supply Voltage :

100V

Contact Pattern :

RECTANGULAR

Contact Finish Thickness - Mating :

200 nm

Number of Conductors :

ONE

Voltage - Rated AC :

100V

Sealable :

No

DIN Conformance :

No

Feature :

Board Guide

Number of Rows :

2

Height Above Board :

0.148 3.75mm

Termination :

SMD/SMT

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

REACH SVHC :

No SVHC

Connector Type :

Receptacle, Outer Shroud Contacts

JESD-609 Code :

e3

Plating Thickness :

8μin

Insertion Force-Max :

.8896 N

Packaging :

Tube

Number Of PCB Rows :

2

Mating Alignment :

With

Mixed Contacts :

No

Insulation Resistance :

2MOhm

Housing Color :

Natural

Circuit Application :

Signal

Filter Feature :

No

ELV :

Compliant

PCB Mount Retention :

Without

Contact Resistance :

30mOhm

Contact Style :

BELLOWED TYPE

Withdrawl Force-Min :

.0973 N

Insulation Material :

Thermoplastic

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time :

9 Weeks

Contact Finish :

Gold

Row Spacing :

2.4 mm

Lead Pitch :

800μm

Mounting Type :

Surface Mount

Pitch :

0.031 0.80mm

MIL Conformance :

No

Number of Positions :

140

Gender :

Receptacle

Reliability :

COMMERCIAL

Depth :

6mm
