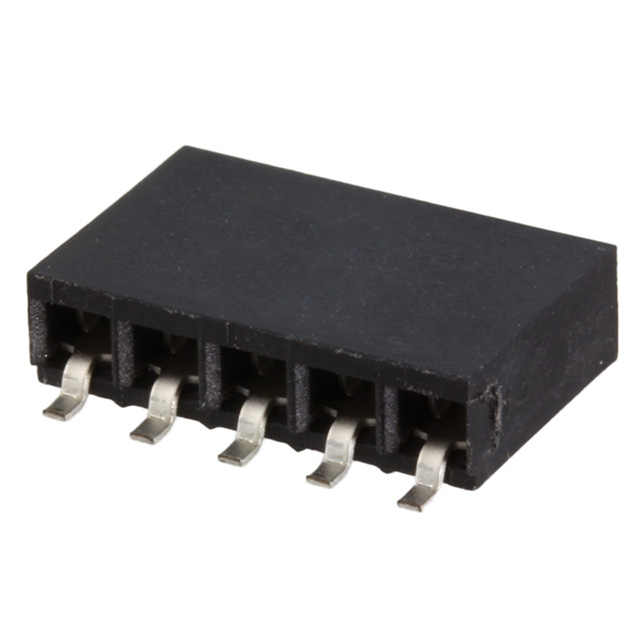

5147733-4
Or copy the link below:
- Mfr.Part #
- 5147733-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS 0.1 TIN SMD R/A
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Mounting Orientation :
- RIGHT ANGLE
- Fastening Type :
- Push-Pull
- Contact Resistance :
- 12mOhm
- Lead Length :
- 860μm
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.137 3.47mm
- Contact Current Rating :
- 2A
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Housing Color :
- Black
- PCB Thickness :
- 1.02mm
- Series :
- AMPMODU Mod II
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Style :
- Board to Board
- Height :
- 3.48mm
- Orientation :
- Right Angle, Horizontal
- Plating Thickness :
- 7.62μm
- Current Rating :
- 2A
- Housing Material :
- Polyester
- Operating Supply Voltage :
- 333V
- Contact Finish - Mating :
- Tin
- High Temperature Compatible :
- yes
- Mount :
- Surface Mount
- Length :
- 12.7mm
- Depth :
- 8.13mm
- Operating Temperature :
- -55°C~125°C
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Packaging :
- Tape and Reel (TR)
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 16 Weeks
- PCB Mount Retention :
- Without
- Published :
- 2008
- Number of Positions Loaded :
- All
- Contact Type :
- Female Socket
- Termination :
- Solder
- Number of Positions :
- 5
- Insulation Resistance :
- 5GOhm
- Contact Shape :
- Square
- Mounting Type :
- Surface Mount, Right Angle
- Datasheets
- 5147733-4
1 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tape & Reel (TR) Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 5 Positions Female Socket
5147733-4 Overview
Packaging is in the form of Receptacle.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod II Series.There is a mounting hole at Surface Mount.It runs on 333V voltage.Devices operate at -55°C~125°C operating temperatures.
5147733-4 Features
AMPMODU Mod II series
5147733-4 Applications
There are a lot of TE Connectivity AMP Connectors
5147733-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
