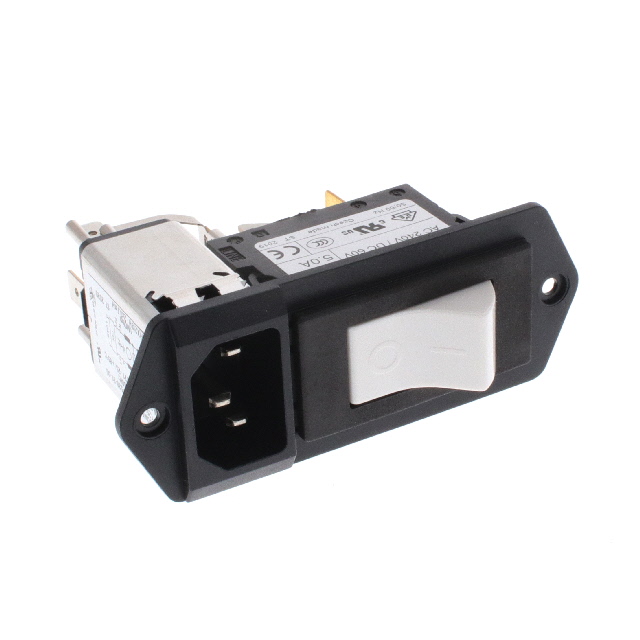

5145.0847.531

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Width :

36mm

Approval Agency :

cULus, ENEC

Current :

6A

Voltage - Rated :

250V

Depth :

64.2mm

Current - UL :

6A

Series :

5145

Number of Positions :

3

Number of Poles :

2

Factory Lead Time :

22 Weeks

Mounting Type :

Panel Mount, Flange

Radiation Hardening :

No

Package / Case :

Module

Filter Type :

Filtered (EMI, RFI) - Commercial, Medical

Termination :

Quick Connect - 0.250 (6.3mm)

Accomodates a Fuse :

No

Moisture Sensitivity Level (MSL) :

Vendor Undefined

RoHS Status :

ROHS3 Compliant

Weight :

85.048569g

Flammability Rating :

UL94 V-0

Panel Cutout Dimensions :

Rectangular - 29.00mm x 72.00mm

Switch Features :

Circuit Breaker, Switch On-Off

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

Mount :

Flanges, Panel, Screw

Current Rating :

6A

Height :

91.5mm

Voltage - Rated AC :

500mV

Housing Material :

Thermoplastic

Max Voltage Rating (AC) :

125V

Min Operating Temperature :

-10°C

Connector Type :

Receptacle, Male Blades - Module

Gender :

Male

Connector Style :

IEC 320-C14

Number of Contacts :

3

Voltage - UL :

125VAC

Ingress Protection :

IP40

Current - IEC :

6A

Max Operating Temperature :

55°C

Fuse :

No

Voltage - IEC :

250VAC

Ratings :

IP40

Lead Free :

Lead Free
