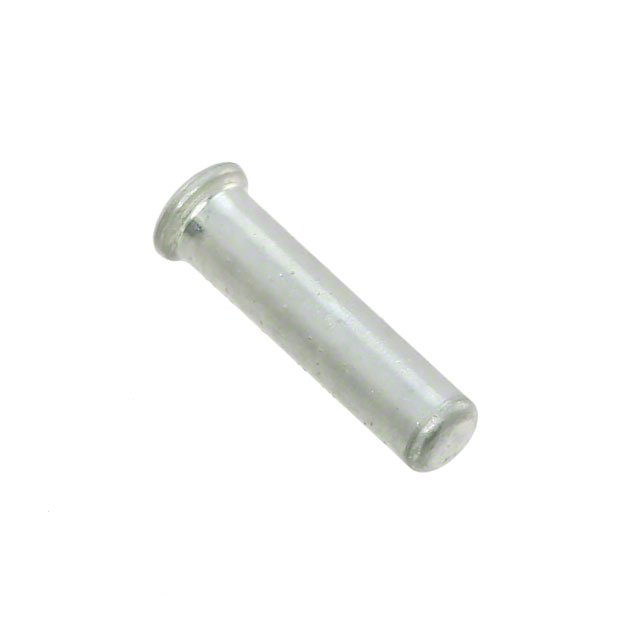

50864-1
Or copy the link below:
- Mfr.Part #
- 50864-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .026-.033 SOLDER
- Stock
- 18,868
- In Stock ：
- 18,868
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Packaging :
- Bulk
- Max Current Rating :
- 6.5A
- Connector Type :
- Socket
- Number of Contacts :
- 1
- Lead Free :
- Contains Lead
- Wire/Cable Gauge :
- 20 AWG
- Hole Diameter :
- 1.6002 mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Termination :
- Solder
- Published :
- 2005
- Orientation :
- Straight
- Feature :
- Closed Bottom
- Depth :
- 2.03mm
- Circuit Application :
- Power
- Diameter - Inside :
- 840 μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Hole Diameter :
- 0.062 ~ 0.063 (1.57mm ~ 1.60mm)
- Contact Material :
- BERYLLIUM COPPER
- RoHS Status :
- Non-RoHS Compliant
- Length :
- 6.5278mm
- Contact Finish :
- Gold
- Length - Overall :
- 0.257 6.53mm
- Plating Thickness :
- 30μm
- Contact Current Rating :
- 6.5A
- ELV :
- Non-Compliant
- Tail Type :
- No Tail
- Mount :
- Surface Mount
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 19 Weeks
- Accepts Pin Diameter :
- 0.026 ~ 0.033 (0.66mm ~ 0.84mm)
- Operating Temperature :
- -65°C~126°C
- Wire/Cable Type :
- Discrete
- Flange Diameter :
- 0.080 (2.03mm)
- Socket Depth :
- 0.244 6.20mm
- PCB Thickness :
- 3.18mm
- Sealable :
- No
- Datasheets
- 50864-1
