5054050570

Share

Or copy the link below:

Mfr.Part #
5054050570
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
CONN RCPT 5POS 0.059 GOLD SMD
Stock
47
In Stock :
47

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Headers, Receptacles, Female Sockets
Packaging :
Tape and Reel (TR)
Feature :
Solder Retention
Style :
Board to Cable/Wire
Number of Rows :
1
Contact Finish Thickness - Mating :
8.00μin 0.203μm
Contact Type :
Forked
Published :
2015
RoHS Status :
ROHS3 Compliant
Termination :
Solder
Number of Positions Loaded :
All
Contact Material :
COPPER ALLOY
Reliability :
COMMERCIAL
Contact Finish - Post :
Tin
Insulation Material :
Resin
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Current Rating (Amps) :
Varies by WireGAuge
Total Number of Contacts :
5
PCB Contact Pattern :
RECTANGULAR
Number Of PCB Rows :
1
Mounting Option 1 :
LOCKING
Number of Positions :
5
Mounting Type :
Surface Mount
Number of Conductors :
ONE
Series :
CLIK-Mate 505405
Contact Finish Thickness - Post :
39.4μin 1.00μm
Applications :
Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Height :
0.285 7.25mm
Connector Type :
Receptacle
Contact Finish - Mating :
Gold
Insulation Color :
Beige
Plating Thickness :
7.87μin
Pitch - Mating :
0.059 1.50mm
Reference Standard :
UL
Body Depth :
0.287 inch
Fastening Type :
Latch Holder
Voltage - Rated :
100V
Material Flammability Rating :
UL94 V-0
Contact Gender :
FEMALE
Contact Resistance :
20mOhm
Factory Lead Time :
13 Weeks
Operating Temperature :
-40°C~105°C
ECCN Code :
EAR99
Datasheets
5054050570
Introducing Headers, Receptacles, Female Sockets Molex 5054050570 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Operating Temperature:-40°C~105°C, 5054050570 pinout, 5054050570 datasheet PDF, 5054050570 amp .Beyond Headers, Receptacles, Female Sockets Molex 5054050570 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

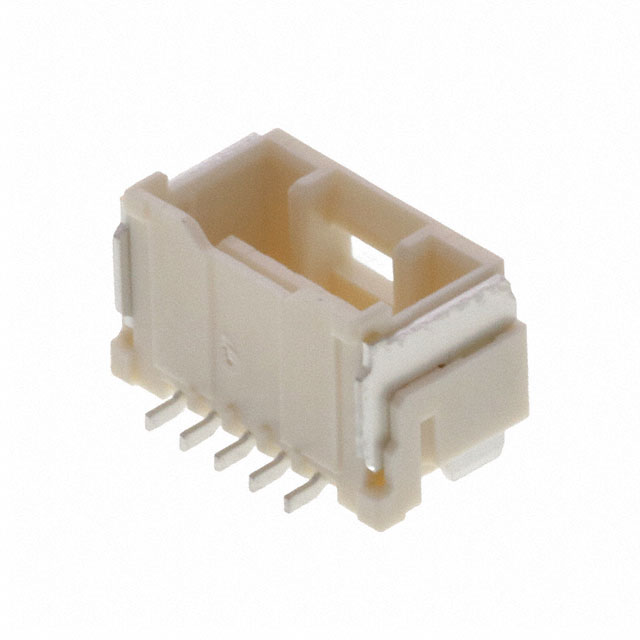

Molex 5054050570


1 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Resin 5 Positions Forked

5054050570 Overview


The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number CLIK-Mate 505405 belongs to the CLIK-Mate 505405 Series.In addition to Automotive, General Purpose, Industrial, Lighting, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.

5054050570 Features


CLIK-Mate 505405 series


5054050570 Applications


There are a lot of Molex
5054050570 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
