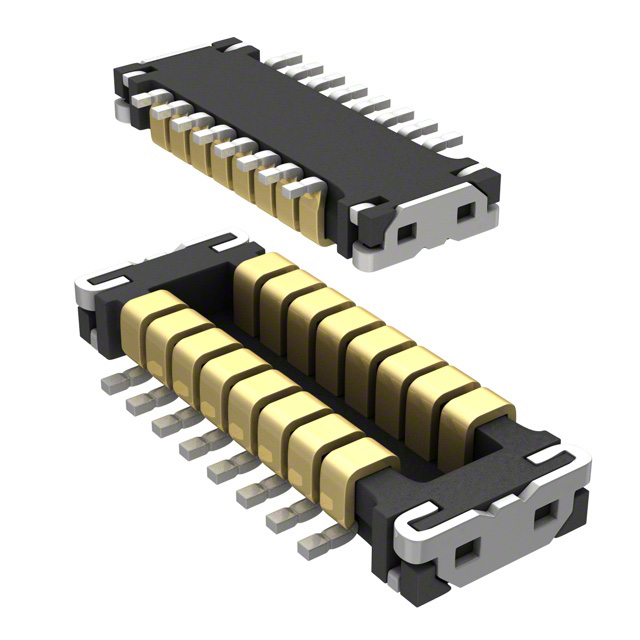

5035521680
Or copy the link below:
- Mfr.Part #
- 5035521680
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 16POS SMD GOLD
- Stock
- 1,314
- In Stock ：
- 1,314
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 16
- Number of Rows :
- 2
- Number Of PCB Rows :
- 2
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Material :
- NOT SPECIFIED
- Connector Type :
- Plug, Outer Shroud Contacts
- Body Length or Diameter :
- 0.183 inch
- Height Above Board :
- 0.022 0.57mm
- Feature :
- Solder Retention
- Number of Conductors :
- ONE
- Body Breadth :
- 0.066 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- Contact Pattern :
- RECTANGULAR
- Packaging :
- Tape and Reel (TR)
- Mounting Option 1 :
- LOCKING
- Factory Lead Time :
- 17 Weeks
- Series :
- SlimStack 503552
- Stack Height (Mating) :
- 0.7mm
- Contact Finish :
- Gold
- Insulator Color :
- Black
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Pitch :
- 0.016 0.40mm
- HTS Code :
- 8536.69.40.40
- Reference Standard :
- UL
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2015
- Number of Positions :
- 16
- Datasheets
- 5035521680
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 16 Positions SlimStack 503552 Gold NOT SPECIFIED
5035521680 Overview
Currently, it is packaged in Plug, Outer Shroud Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the SlimStack 503552 Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Solder Retention when it operates.
5035521680 Features
SlimStack 503552 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
5035521680 Applications
There are a lot of Molex
5035521680 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
