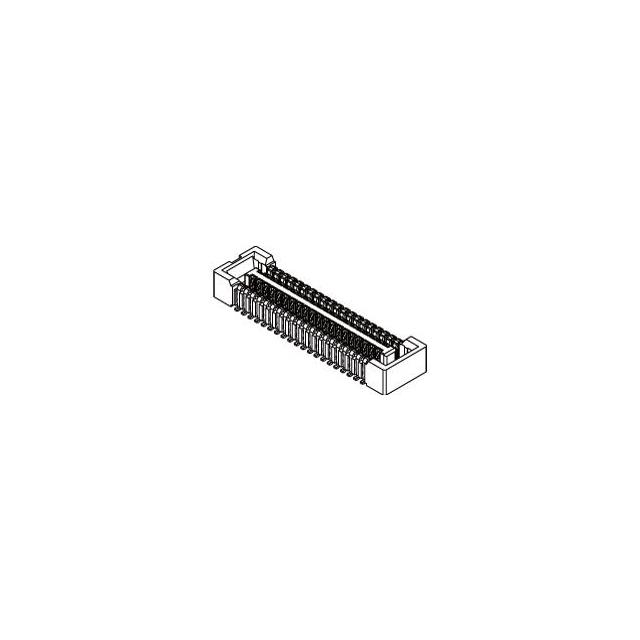

503105-4010

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Durability :

30 Cycles

Contact Finish :

Gold

Operating Temperature (Max) :

75°C

Insulator Color :

Black

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Contact Gender :

Male

Height Above Board :

0.055 1.40mm

Contact Material :

NOT SPECIFIED

Packaging :

Tape and Reel (TR)

Body Depth :

0.055 inch

Insulation Resistance :

100000000Ohm

Number of Rows :

2

Series :

SlimStack 503105

Number Of PCB Rows :

2

Mounting Option 1 :

LOCKING

Rated Current (Signal) :

0.3A

Pitch :

0.016 0.40mm

Dielectric Withstanding Voltage :

350VAC V

Plating Thickness :

3.93μin

Total Number of Contacts :

40

Contact Finish Thickness :

3.94μin 0.10μm

Polarization Key :

POLARIZED HOUSING

Operating Temperature (Min) :

-30°C

Published :

2013

Reliability :

COMMERCIAL

Insulation Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Reference Standard :

UL

Stack Height (Mating) :

1.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Style :

CENTRONIC

Factory Lead Time :

15 Weeks

Connector Type :

Receptacle, Center Strip Contacts

Number of Positions :

40

Mounting Type :

Surface Mount

Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Contact Resistance :

80mOhm
