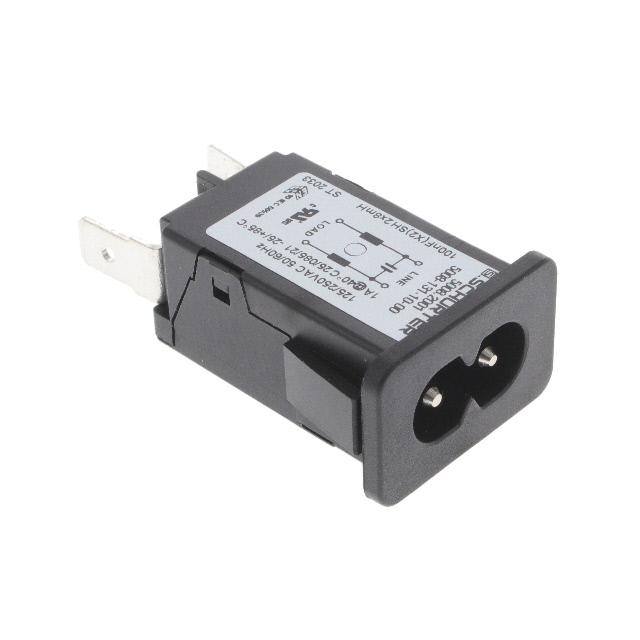

5008.2001

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Weight :

17.290006g

Panel Cutout Dimensions :

Rectangular - 27.20mm x 18.00mm

RoHS Status :

ROHS3 Compliant

Voltage - IEC :

250VAC

Width :

27.2mm

ECCN Code :

EAR99

MIL Conformance :

No

Shell Material :

POLYETHYLENE

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Package / Case :

Module

Filter Type :

Filtered (EMI, RFI) - Commercial

Accomodates a Fuse :

No

Number of Positions :

2

Mount :

Panel, Snap in

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Current :

1A

Panel Thickness :

0.059 1.50mm

Min Operating Temperature :

-25°C

Housing Material :

Thermoplastic

Max Voltage Rating (AC) :

250V

Packaging :

Bulk

Connector Style :

IEC 320-C8, Non-Polarized

Voltage - Rated AC :

250V

Approval Agency :

cULus, ENEC

Current Rating :

1A

Factory Lead Time :

12 Weeks

Series :

5008

Voltage - Rated DC :

250V

Height :

18mm

Total Number of Contacts :

2

DIN Conformance :

No

Ingress Protection :

IP40

HTS Code :

8536.69.40.30

Connector Type :

Receptacle, Male Pins

Depth :

47.9mm

Max Operating Temperature :

85°C

Mounting Type :

Panel Mount, Snap-In

REACH SVHC :

No SVHC

Termination :

Quick Connect - 0.250 (6.3mm)

Gender :

Receptacle

IEC Conformance :

yes
