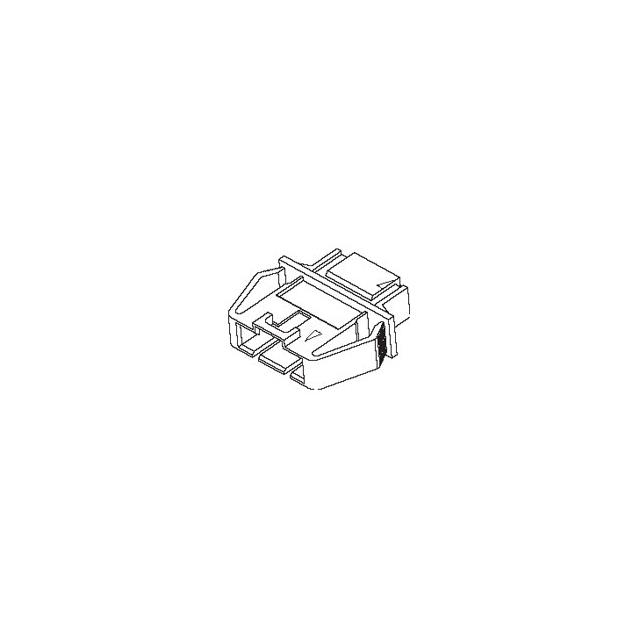

50-65-0108

Manufacturer :

Molex

Product Category :

Rectangular Connector Accessories

Package :

Box

Mixed Contacts :

No

Product Depth (mm) :

8.91(mm)

Number of Contacts :

8(POS)

MIL Conformance :

No

Body Orientation :

Straight

Product Status :

Active

UL Flammability Code :

94V-0

Accessory Type :

Shroud

Number of Positions :

8

Pitch :

2.5400 mm

Type :

Housing

Packaging :

Bag

Polarization Key :

POLARIZED RIB(S)

Series :

SL 70104

Housing Material :

Polyester

Contact Gender :

MALE-FEMALE

Product Length (mm) :

36.67(mm)

Termination Type :

Crimp

Insulator Color :

Black

Option :

GENERAL PURPOSE

Straight Connection :

yes

ECCN Code :

EAR99

HTS Code :

8536.69.80.00

Filter Feature :

No

Base/Housing Material :

Polyester

DIN Conformance :

No

Pitch (mm) :

2.54(mm)

Body Breadth :

0.332 inch

Reach Compliance Code :

Compliant

Product Length :

36.67 mm

Reference Standard :

UL, CSA

Mounting Type :

Panel

Total Number of Contacts :

8

Mounting Option 2 :

LOCKING

Product Height (mm) :

26.54(mm)

Operating Temperature :

-40 to 105 °C

Operating Temp Range :

-40C to 105C

Factory Lead Time :

4 Weeks

For Use With/Related Products :

C-Grid SL Series

Mounting Option 1 :

GUIDE SLOT

Connector Type :

BOARD CONNECTOR ADAPTER

Housing Color :

Black

Contact Material :

NOT SPECIFIED

Features :

Latch Holder

Manufacturer :

Molex

Body Depth :

1.045 inch

Number of Contact Rows :

1

Subcategory :

Headers and Edge Type Connectors

Pbfree Code :

yes

Gender :

Receptacle

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Mating Contact Pitch :

0.1 inch

Additional Feature :

SL, POLARIZED
