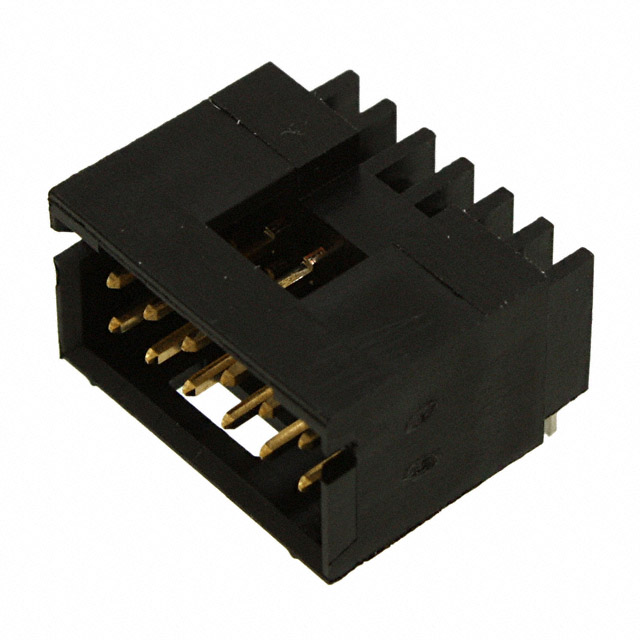

5-103166-4
Or copy the link below:
- Mfr.Part #
- 5-103166-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 2.54MM
- Stock
- 653
- In Stock ：
- 653
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.400 10.16mm
- Polarization Key :
- POLARIZED HOUSING
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- Length :
- 18.08mm
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Lead Pitch :
- 2.54mm
- Approval Agency :
- CSA
- MIL Conformance :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tray
- ELV :
- Compliant
- Fastening Type :
- Detent Lock
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- PCB Thickness :
- 1.397mm
- Contact Finish - Mating :
- Gold
- REACH SVHC :
- No SVHC
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- High Temperature Housing :
- No
- Mating Post Length :
- 8.08mm
- Mounting Type :
- Through Hole, Right Angle
- Lead Length :
- 3.429mm
- Contact Length - Mating :
- 0.318 8.08mm
- Contact Shape :
- Square
- Contact Current Rating :
- 3A
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Style :
- Board to Board or Cable
- Mixed Contacts :
- No
- Gender :
- Male
- Plating Thickness :
- 30μin
- JESD-609 Code :
- e3
- Filter Feature :
- No
- Pbfree Code :
- yes
- Number of Positions :
- 12
- Voltage - Rated AC :
- 250V
- Lead Free :
- Lead Free
- Housing Color :
- Black
- DIN Conformance :
- No
- Factory Lead Time :
- 21 Weeks
- Depth :
- 16.23mm
- Body Breadth :
- 0.413 inch
- Number of Rows :
- 2
- Rated Current (Signal) :
- 3A
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Length - Post :
- 0.135 3.43mm
- Shrouded End Dimension :
- 1.68 mm
- Number Of PCB Rows :
- 2
- Series :
- AMPMODU Mod II
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- Operating Temperature :
- -65°C~105°C
- RoHS Status :
- RoHS Compliant
- Insulation Resistance :
- 5GOhm
- Published :
- 2008
- PCB Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 1050VAC V
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mating Contact Pitch :
- 0.1 inch
- IEC Conformance :
- No
- Voltage - Rated DC :
- 250V
- Current Rating :
- 3A
- Datasheets
- 5-103166-4
5-103166-4 Documents
AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tray Through Hole, Right Angle Gold Thermoplastic 12-Position Board to Board or Cable 0.400 10.16mm Height
5-103166-4 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the AMPMODU Mod II Series.By Through Hole, the part is mounted.Operating temperature is set to -65°C~105°C.
5-103166-4 Features
AMPMODU Mod II series
5-103166-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-103166-4 Rectangular Connectors applications.
