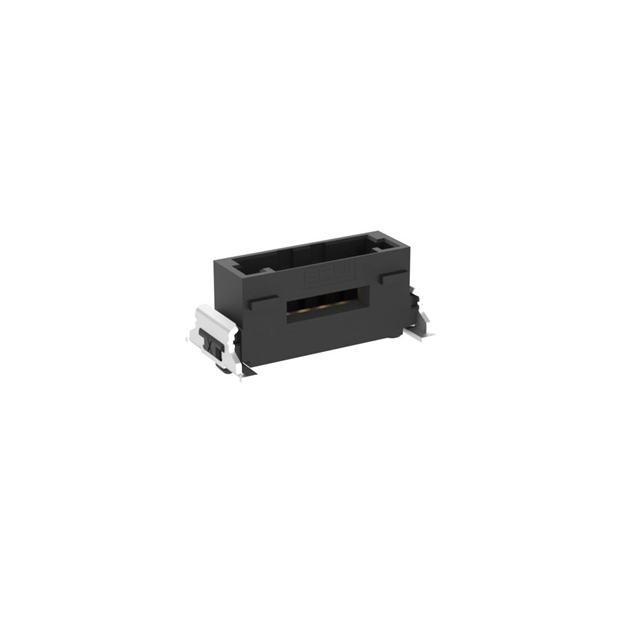

474817

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

Overall Contact Length :

-

Mounting Type :

Surface Mount

Termination :

Solder

Contact Finish - Mating :

Gold

Product Type :

Headers and Wire Housings

Ingress Protection :

-

Subcategory :

Headers and Wire Housings

Product :

Headers

Number of Rows :

1

Fastening Type :

Latch Holder

Contact Length - Mating :

0.087 (2.21mm)

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

-

Type :

SHROUDED

Connector Type :

Header

Contact Gender :

Pin (Male)

Style :

Board to Cable/Wire

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Number of Positions Loaded :

All

Contact Shape :

Square

Pitch - Mating :

0.050 (1.27mm)

Termination Style :

Solder

Mounting Style :

SMD/SMT

Insulation Material :

Liquid Crystal Polymer (LCP)

Insulation Color :

Black

Mated Stacking Heights :

-

Series :

MiniBridge

Number of Positions :

6

Maximum Operating Temperature :

+ 150 C

Shrouding :

Shrouded - 4 Wall

Pitch :

1.27 mm

Base Product Number :

-

Features :

Board Guide, Pick and Place, Solder Retention

Row Spacing - Mating :

-

Contact Finish Thickness - Post :

157.5µin (4.00µm)

Contact Finish Thickness - Mating :

-

Voltage Rating :

-

Insulation Height :

0.207 (5.25mm)

Applications :

-

Current Rating (Amps) :

5.4A per Contact

Mounting Angle :

Straight

Product Status :

Active

Operating Temperature :

-55°C ~ 150°C

Contact Material :

COPPER ALLOY

Contact Type :

Male Pin

Contact Finish - Post :

Tin
