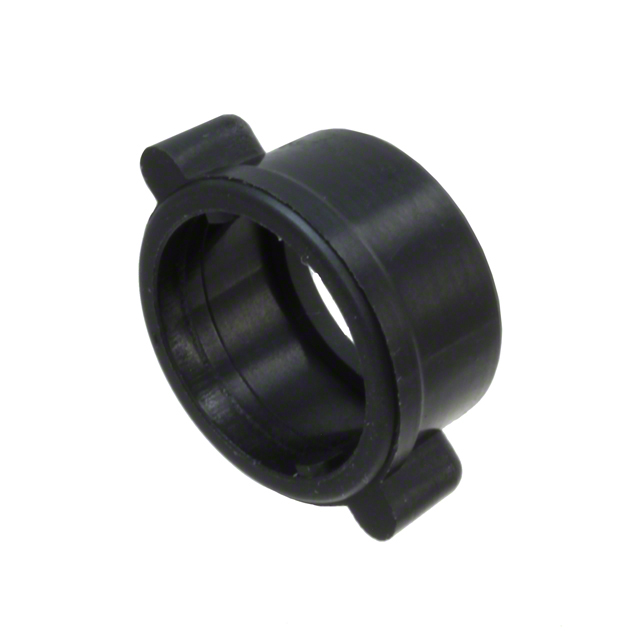

4482

Manufacturer :

Switchcraft / Conxall

Product Category :

Circular Connector Accessories

Body Breadth :

0.236 inch

Reliability :

COMMERCIAL

PCB Contact Row Spacing :

2.0066 mm

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

1000000000Ohm

RoHS Status :

ROHS3 Compliant

Contact Resistance :

30mOhm

Termination Type :

Surface Mount

Body/Shell Style :

Receptacle

Series :

Multi-Con-X®

Terminal Pitch :

2.0066mm

Mounting Option 1 :

LATCH and EJECT

Reference Standard :

UL

Factory Lead Time :

8 Weeks

Mounting Option 2 :

LOCKING

Durability :

50 Cycles

Dielectric Withstanding Voltage :

500VAC V

Number of Conductors :

ONE

Accessory Type :

Coupling Nut

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Min) :

-25°C

Mating Contact Pitch :

0.079 inch

Operating Temperature (Max) :

85°C

Feature :

Winged

Mounting Type :

BOARD

Connector Type :

BOARD CONNECTOR

Color :

Black

Total Number of Contacts :

10

Body Length or Diameter :

1.169 inch

Contact Style :

SQ PIN-SKT

Mating Contact Row Spacing :

0.079 inch

Mounting Style :

Straight

Contact Finish - Mating :

SN

Rated Current (Signal) :

1A

Number Of PCB Rows :

2

Contact Pattern :

RECTANGULAR

Contact Gender :

Male

Material :

Nylon
