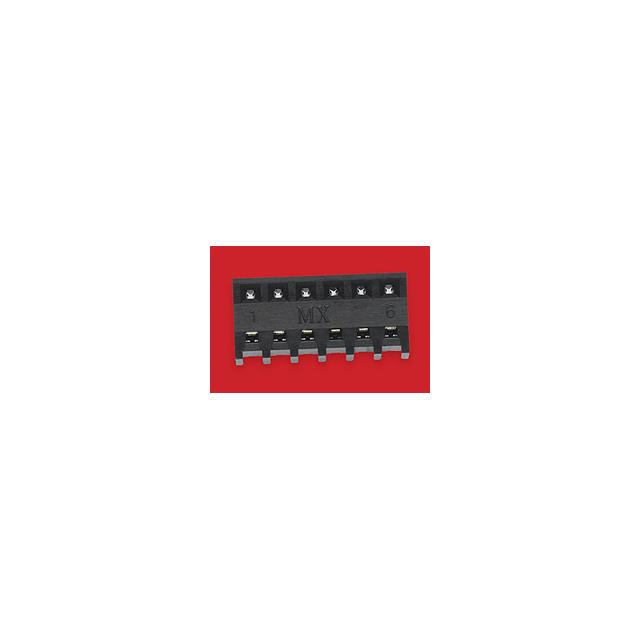

44812-0026

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Mixed Contacts :

No

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Current Rating :

5A

Color :

Black

Contact Plating :

Gold

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Pbfree Code :

yes

Withdrawl Force-Min :

2.6966 N

Mount :

Through Hole

Rated Current (Signal) :

5A

MIL Conformance :

No

Body/Shell Style :

PLUG

Number of Positions :

8

UL Flammability Code :

94V-0

Number of Conductors :

ONE

Durability :

25 Cycles

Max Operating Temperature :

105°C

Contact Finish - Mating :

NOT SPECIFIED

Contact Resistance :

30mOhm

Glow Wire Compliant :

Non-Compliant

Contact Pattern :

RECTANGULAR

Connector Type :

Receptacle, Socket

DIN Conformance :

No

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Min Operating Temperature :

-40°C

Termination :

Solder

Reference Standard :

UL, CSA

Housing Material :

Thermoplastic

Reliability :

COMMERCIAL

Total Number of Contacts :

8

Number of Rows :

1

Polarization Key :

POLARIZED HOUSING

Orientation :

Vertical

PCB Contact Pattern :

RECTANGULAR

Pitch :

2.54mm

Voltage - Rated :

250V

Body Breadth :

0.295 inch

Filter Feature :

No

Contact Style :

SQ PIN-SKT

Gender :

FEMALE
