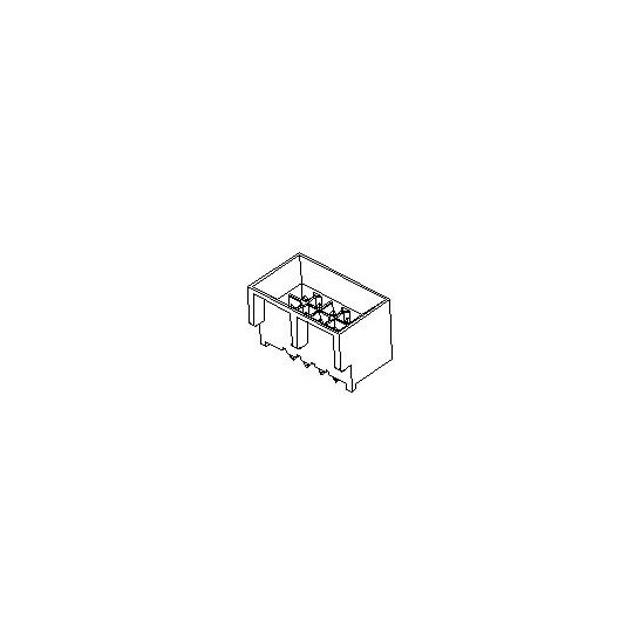

44432-2001

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

ECCN Code :

EAR99

Termination Style :

Solder Pin

Polarization Key :

POLARIZED HOUSING

Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Lifecycle Status :

Production (Last Updated: 2 years ago)

Flammability :

94V-0

Pitch :

3.0000 mm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

UL Flammability Code :

94V-0

Mounting :

Through Hole

Number of Circuits :

20

Brand :

Molex

Mount :

Through Hole

Reliability :

COMMERCIAL

Voltage Rating :

250 VAC/DC

Reach Compliance Code :

Compliant

Mounting Type :

BOARD

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination Method :

Solder

Country of Origin :

US

Body Orientation :

Straight

Option :

GENERAL PURPOSE

Body Breadth :

0.469 inch

Accessory Type :

-

Product Category :

Headers and Wire Housings

Orientation :

Vertical

Contact Style :

SQ PIN-SKT

Base/Housing Material :

Thermoplastic

Durability :

30 Cycles

Type :

SHROUDED

Dielectric Withstanding Voltage :

1500VAC V

Insulation Resistance :

1000000000 Ω

Pbfree Code :

yes

RoHS :

Details

Product :

Headers

Manufacturer :

Molex

PCB Contact Row Spacing :

2.9972 mm

Contact Material :

Brass

IEC Conformance :

No

Connector Type :

BOARD CONNECTOR

DIN Conformance :

No

Contact Type :

-

Number of Contacts :

20

Terminal Length :

0.13 inch

Current Rating :

8.5 A

Glow Wire Compliant :

Non-Compliant

Row Spacing :

3 mm

Mixed Contacts :

No

Contact Gender :

Pin (Male)

Application :

Board-to-Board

Packaging :

Tray

Termination :

Solder

Withdrawl Force-Min :

3.614 N

Filter Feature :

No

Flammability Rating :

UL 94 V-0

Mating Contact Pitch :

0.118 inch

Plating :

Tin

Number of Rows :

2 Row

Housing Material :

Thermoplastic (TP)

Max Operating Temperature :

105 °C

Insertion Force-Max :

11.5648 N

Mounting Angle :

Straight

Min Operating Temperature :

-40 °C

Board Mounting Option :

PEG

Minimum Operating Temperature :

- 40 C

Additional Feature :

POLARIZED

Terminal Pitch :

3 mm

Operating Temperature :

-40 to 105 °C

Number of Positions :

20 Position

Series :

44432

Mounting Style :

Through Hole

Subcategory :

Headers and Wire Housings

Product Type :

Headers and Wire Housings

Product Status :

Active

Contact Plating :

Tin

Termination Post Length :

3.3 mm

Housing Color :

Black

Body Depth :

0.457 inch

Gender :

Header

Reference Standard :

UL

Rated Current (Signal) :

5 A

Termination Type :

Solder

Plating Thickness :

200u inch

Tradename :

Micro-Fit 3.0

Insulator Color :

Black

Maximum Operating Temperature :

+ 105 C

Contact Resistance :

10 MΩ

HTS Code :

8536.69.40.40

Mating Contact Row Spacing :

0.118 inch

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

20

Max Voltage Rating (DC) :

250.25 kV

Body/Shell Style :

Receptacle
