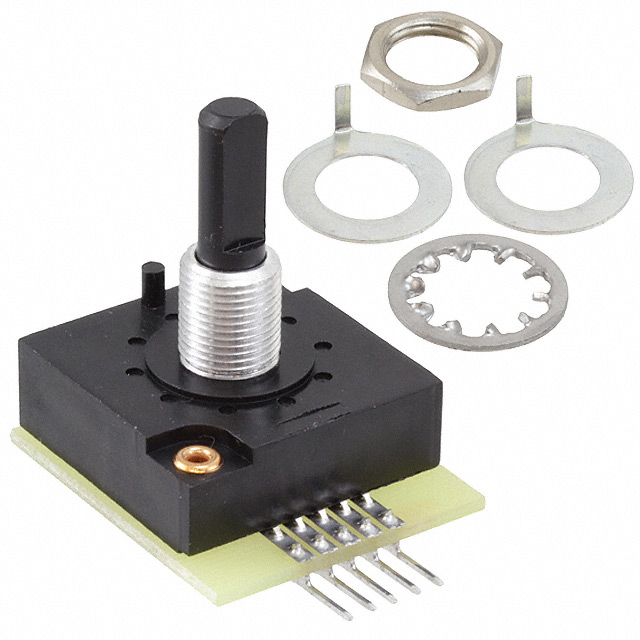

436022-1
Or copy the link below:
- Mfr.Part #
- 436022-1
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 10POS 125MA 115V
- Stock
- 71
- In Stock ：
- 71
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- HTS Code :
- 8536.50.90.20
- Body Breadth :
- 28.58 mm
- Radiation Hardening :
- No
- Max Operating Temperature :
- 88°C
- Max Voltage Rating (AC) :
- 115V
- Number of Decks :
- 1
- Switching Voltage :
- 115V
- Additional Feature :
- PANEL MOUNTABLE WITH THREADING
- Mount :
- PCB, Panel, Through Hole
- Number of Positions :
- 10
- Throw Configuration :
- SP10T
- ELV :
- Non-Compliant
- Lead Free :
- Contains Lead
- Index Stops :
- Continuous
- Switch Function :
- BCD Complement
- RoHS Status :
- Non-RoHS Compliant
- Switch Action :
- LATCHED
- Contact Material :
- Bronze
- Current - Switching :
- 2A
- Contact Plating :
- Gold
- Termination :
- PC Pin
- Current Rating :
- 125mA
- Switch Type :
- ROTARY CODED SWITCH
- Electrical Life :
- 25000 Cycle(s)
- JESD-609 Code :
- e4
- Min Operating Temperature :
- -18°C
- Orientation :
- Vertical
- ECCN Code :
- EAR99
- Actuator Length :
- 14.88mm
- Voltage - Rated AC :
- 115V
- Contact (DC) Max Rating R Load :
- .02A@20VDC
- Index Angle :
- 36 °
- Number of Switch Sections :
- 1
- Contact Voltage(DC)-Max :
- 20V
- Housing Material :
- Polyester
- Body Length or Diameter :
- 30.48mm
- Datasheets
- 436022-1
